Tiger Cranes builds telescoping stiff boom cranes engineered for both mobile and marine applications. These cranes are designed to deliver real-world performance that goes beyond the spec sheet—every time, in every environment. Each unit is thoroughly tested to ensure it can lift its full rated capacity, even with a fully loaded cable drum and extended reach.
With hydraulic lift and extension cylinders sized to not just hold heavy loads but boom them with confidence, Tiger Cranes are built for demanding jobs. Their reliability has been proven in some of the toughest conditions on the planet. Whether you’re at work on a service body, barge, or dock, Tiger Cranes deliver the power and versatility to get the job done efficiently.
Experience what it means to go Tiger Strong—performance you can count on, wherever the job takes you.
Tiger Crane Models:

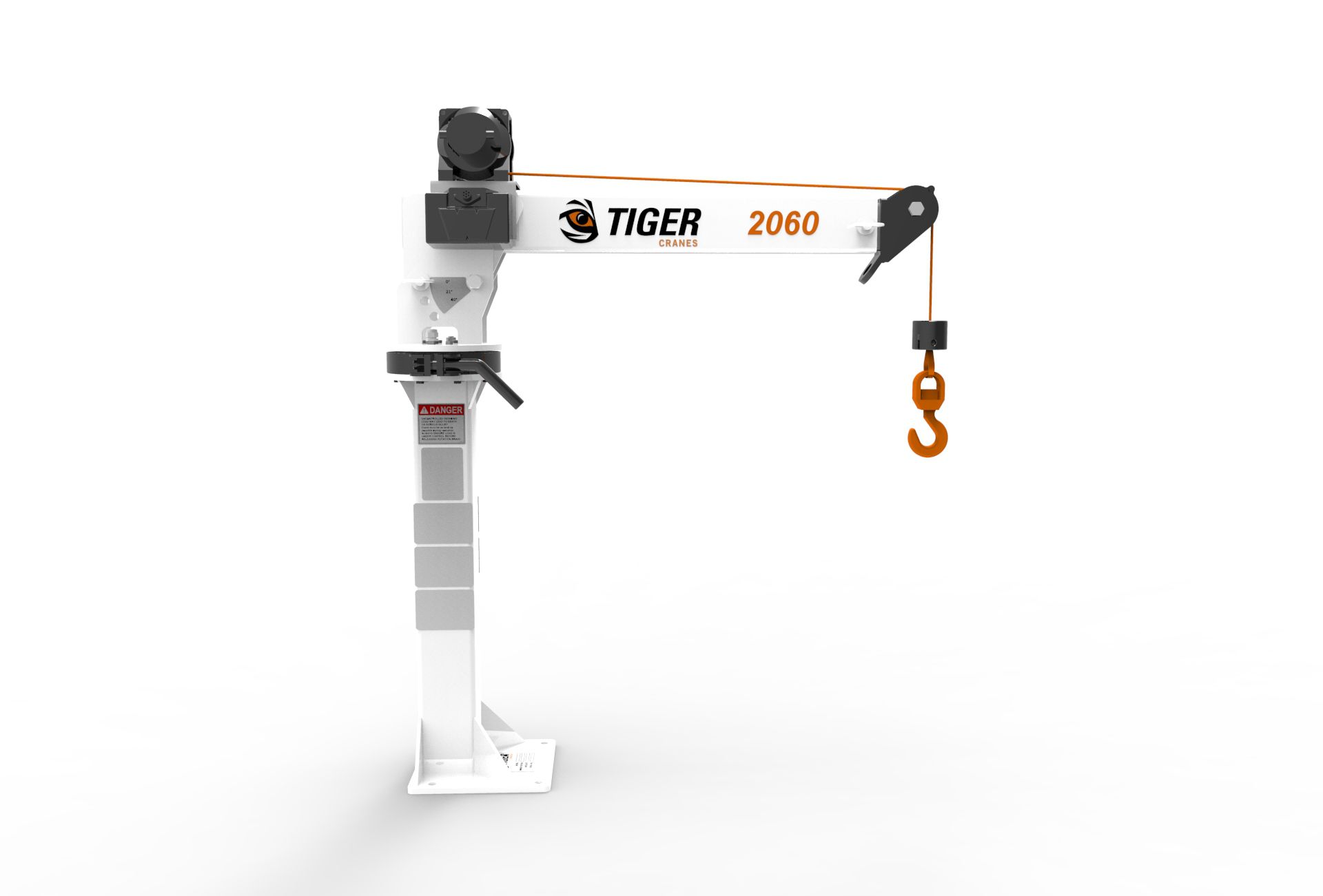

The 2060 Model Tiger Crane, rated at 2,000 pounds capacity, is designed to handle big loads in a small package. The boom can be stowed when not in use saving valuable space in your truck or van. When stowed, the footprint is only 15″ x 27″. The 2060 is positioned manually, while the winch is operated by 12V D/C using a 12-foot corded remote. This mighty little crane has a reach of 3 feet to 5 feet.
Standard Features
- 12 V DC Electric Planetary Winch
- 12 V DC Hydraulic Power Unit
- Full Power x 4 Functions
- 12 ft Corded Remote
- Anti Two Block

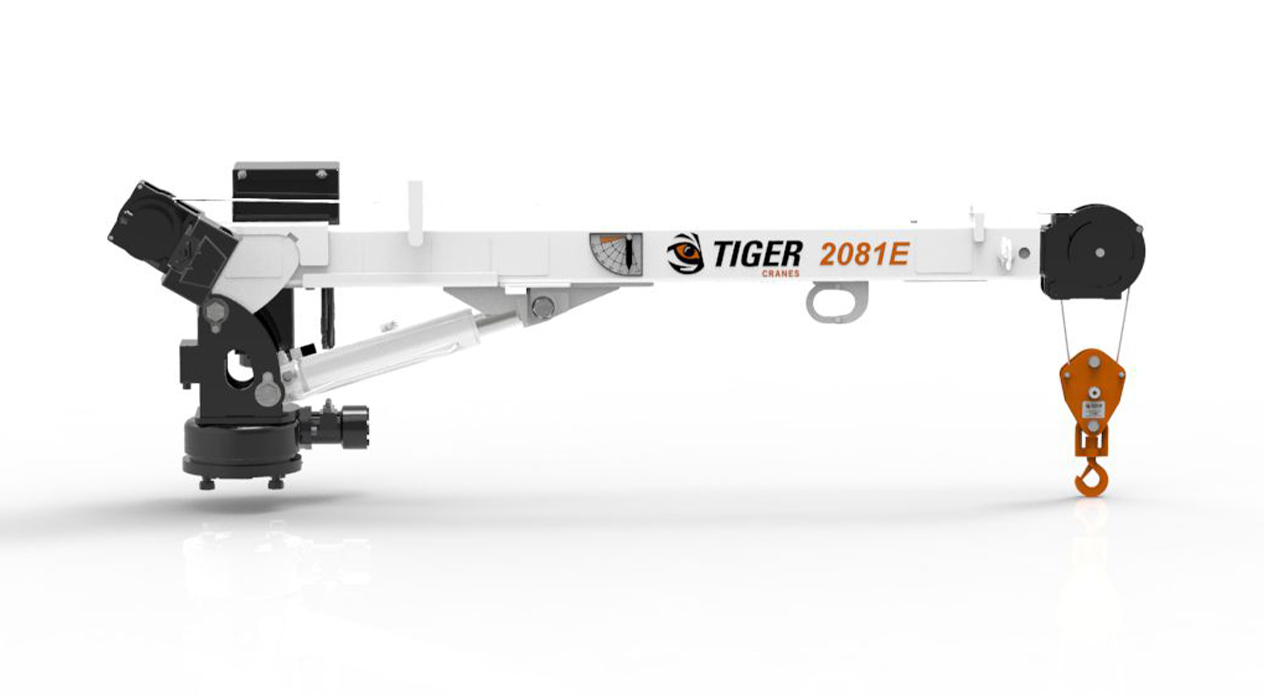

The 2081E Model Tiger Crane lives up to the term “heavy duty” for a 2,000-pound capacity crane. Its 8,500 foot-pound rating is the highest on the market, yet it weighs just 425 pounds. Packed with standard features like wireless remote control and 40 feet of winch cable, the 2081E is perfect for pulling pumps from lift stations underground. And with power rotation, elevation, and winch operation it doesn’t get much easier to use. An optional 30-inch tall base allows you to install it just about anywhere.
Standard Features
- 12 V DC Electric Planetary Winch
- 12 V DC Hydraulic Power Unit
- Wireless Controls
- -15 to 70 degree Power Elevation
- 400 degree Power Rotation
Options
- Tall Base
- 25ft Tethered Remote Control
- Anti-two-Block

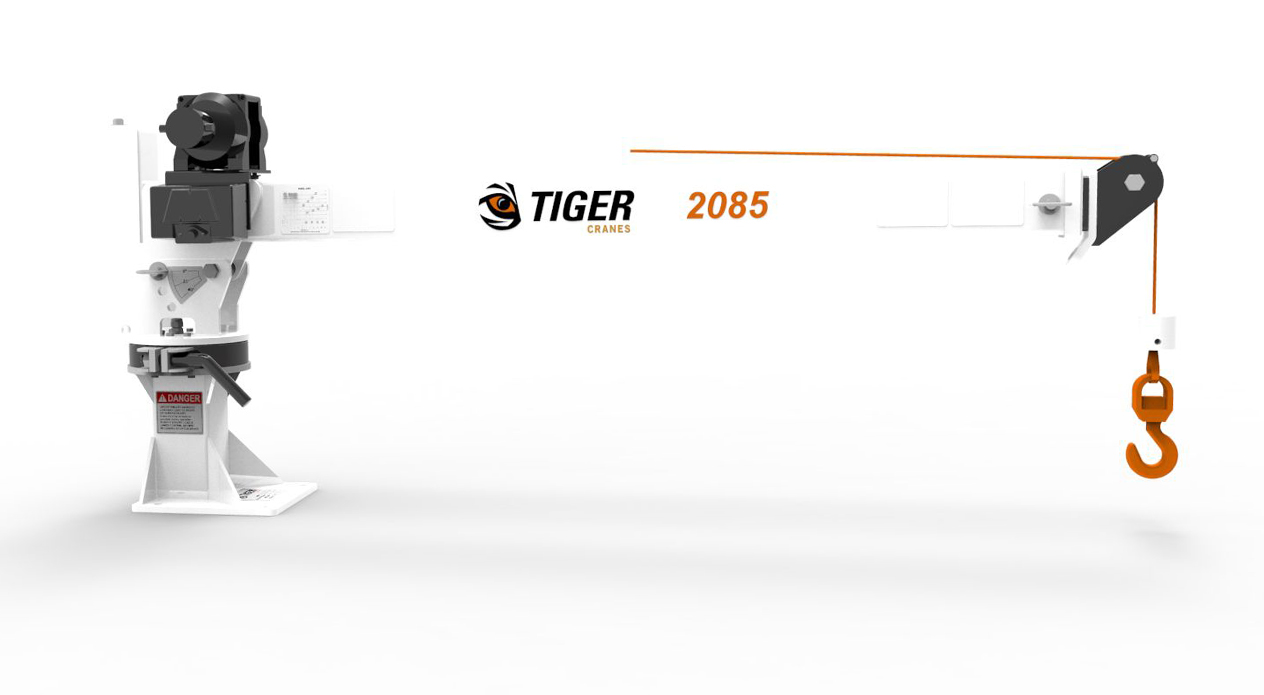

2085 TIGER CRANE
2085
The 2085 Model Tiger Crane is a manually positioned crane rated at 2,000 pounds capacity. This work horse has a manual boom extension from 6 feet to 10 1/2 feet so you can do the lifting where you need it. The 2085 has a stored length of just 81 inches and can be installed just about anywhere that you can supply the winch with 12V DC.
2085TB
The 2085TB Model Tiger Crane is an adaptation of our 2085 model with a tall base to put over 45 inches of clearance under it. This crane is perfect for flatbed installation and trailer mounting to assist you with loading and unloading of product.
Standard Features
- 12 V DC Electric Planetary Winch
- Manual Rotation and Elevation
- 0-21-45 degree Elevation
- 12 ft Corded Remote
Options
- 36.25″ Tall Base
- 33ft Tethered Remote Control
- Anti-two-Block

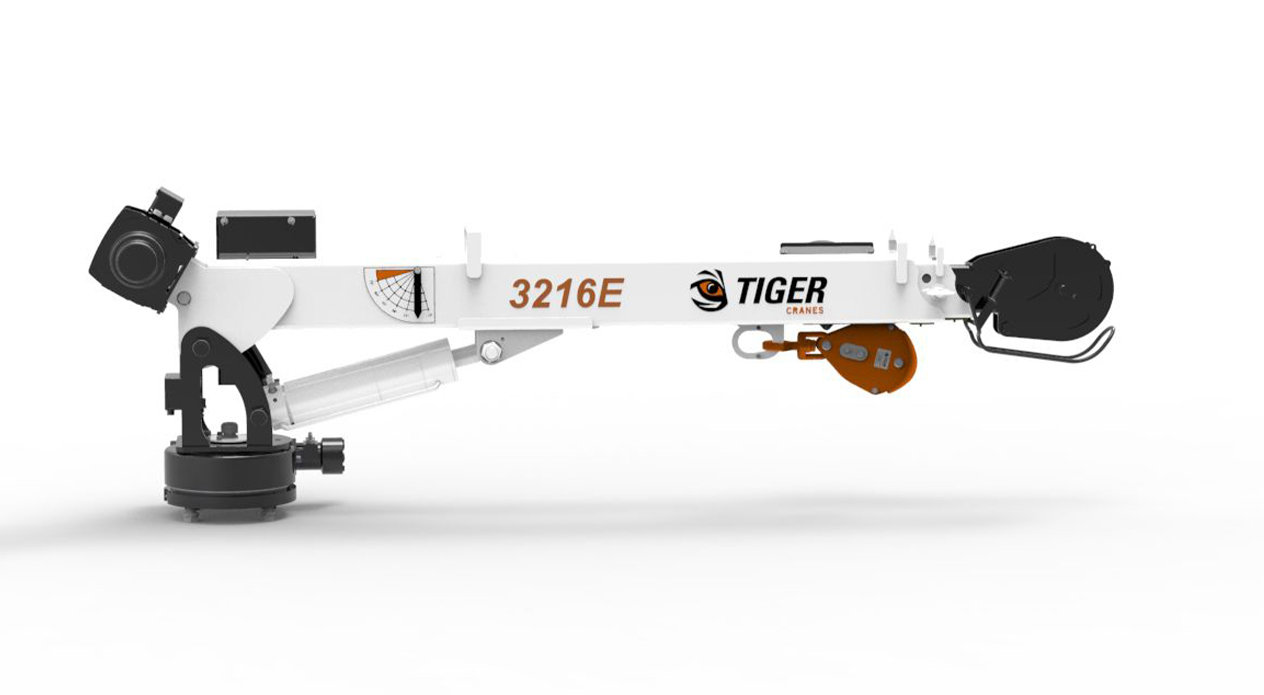

3216E/EP TIGER CRANE
The 3216E/EP Model Tiger Crane boasts 3,200 pounds of lifting capacity in a small package. At just 108 inches long when stowed, it is an ideal choice for 9-foot bodies. The standard wireless remote makes operation a breeze. Options like a 30-inch tall base, LED boom tip lights, and a wireless remote charging pad allow you to customize installation the way you want it.
Standard Features
- 3,200 lb Lift Capacity
- 16.5 ft of Hydraulic/Manual Reach
- 12 V DC Electric Planetary Winch
- 12 V DC Hydraulic Power Unit
- Wireless Remote
Options
- Corded Remote
- Remote Charging Pad
- Proportional Controls

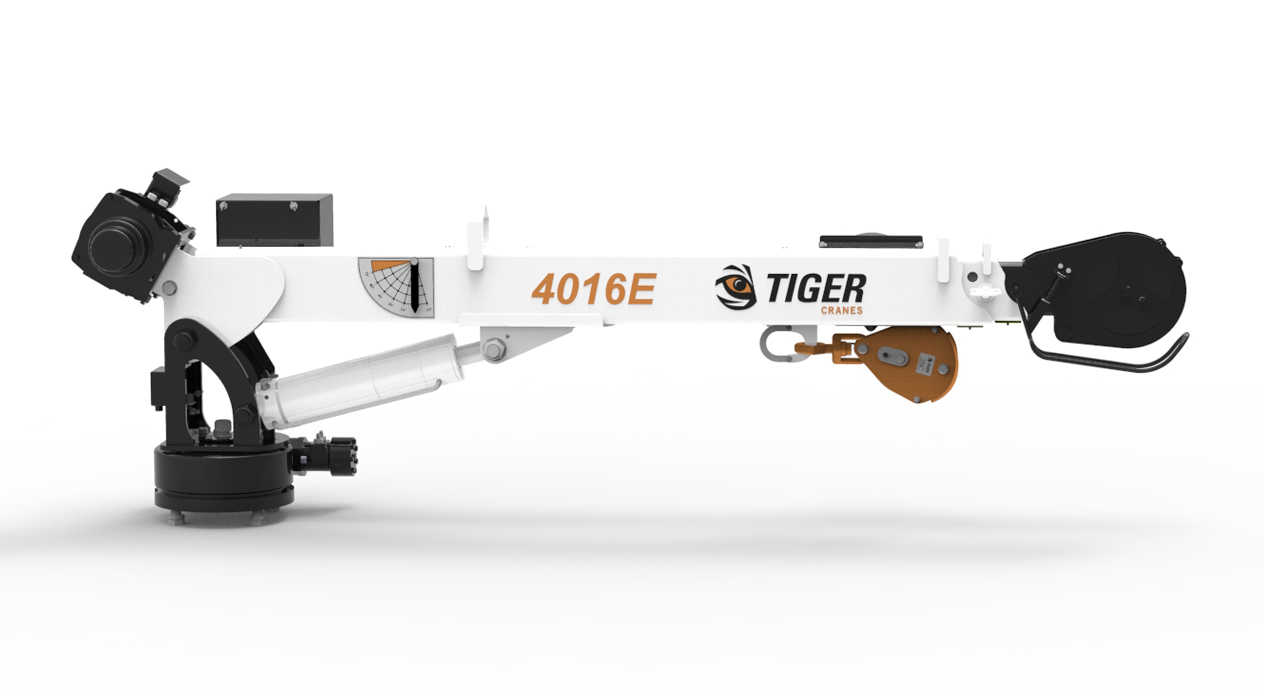

4016E/EP TIGER CRANE
The 4016E/EP Model Tiger Crane carries an even bigger load in the same small package at just 108 inches long with 16 1/2 feet of reach. Weighing just 750 pounds, you get the most lifting capacity you can without sacrificing payload. The standard wireless remote provides ease of use and freedom of operator movement while improving safety. Options available include a 30-inch tall base, LED boom tip lights, and a wireless remote charging pad.
Standard Features
- 4,000 lb Lift Capacity @ 3.2 ft
- 16.5 ft of Manual
- 12 V DC Electric Planetary Winch
- 12 V DC Hydraulic Power Unit
- Wireless Remote
Options
- Corded Remote
- Remote Charging Pad
- Proportional Controls

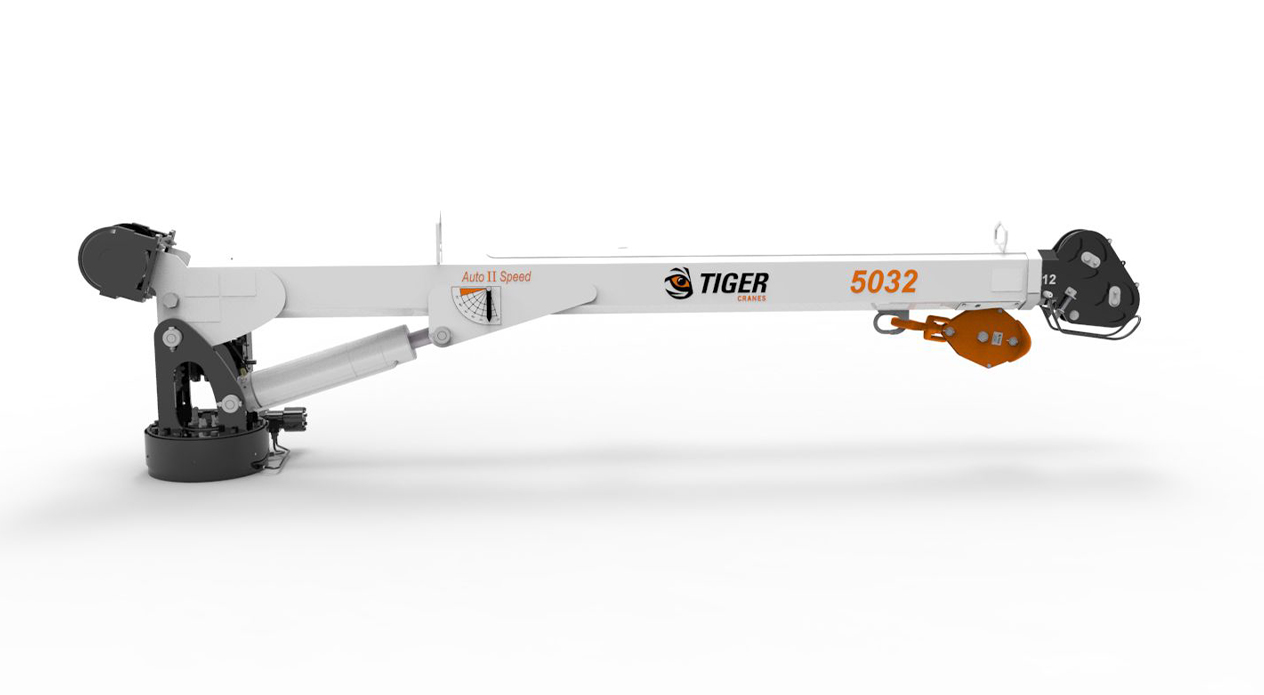

5032 TIGER CRANE
The 5032 Model Tiger Crane features 5,000 pounds of lifting capacity and a reach of 21 feet. This crane provides an extreme amount of lift capacity in a lightweight package at just 1,420 pounds. This full function hydraulic crane also features “Auto II Speed”, which automatically reduces crane speed when a load is detected on the hook giving the operator finite load control. The standard wireless remote control can also be tied into a CAN bus for upload to a customer’s fleet management software.
Standard Features
- 5,000 lb Lift Capacity
- 21 ft of Hydraulic Reach
- 4 Function Hydraulic Power
- Hex Boom with Low Profile Jib Head
- Boom Mounted Planetary Winch
- Wireless Proportional Control with Digital Crane Load Display
- Auto II Speed
Options
- LED Boom Tip Light
5032E/EP TIGER CRANE
The 5032E/EP Model Tiger Crane is a 5,000-pound capacity crane with 21 feet of reach. The “E” model is a fully functioning electric over hydraulic crane. The “EP” model adds optional proportional control to the package allowing for finite load control. This crane weighs in at 1,395 pounds and has a stored length of 159 inches. This crane also features a hex boom design adding strength and durability.
Standard Features
- 5,000 lb Lift Capacity
- 21 ft of Hydraulic Reach
- Hex Boom with Low Profile Jib Head
- 12 V DC Electric Planetary Winch
- 12 V DC Hydraulic Power Unit
- Full Power x 4 Functions
- Wireless Control
Options
- LED Boom Tip Light
- 25 ft Corded Remote
- Proportional Controls

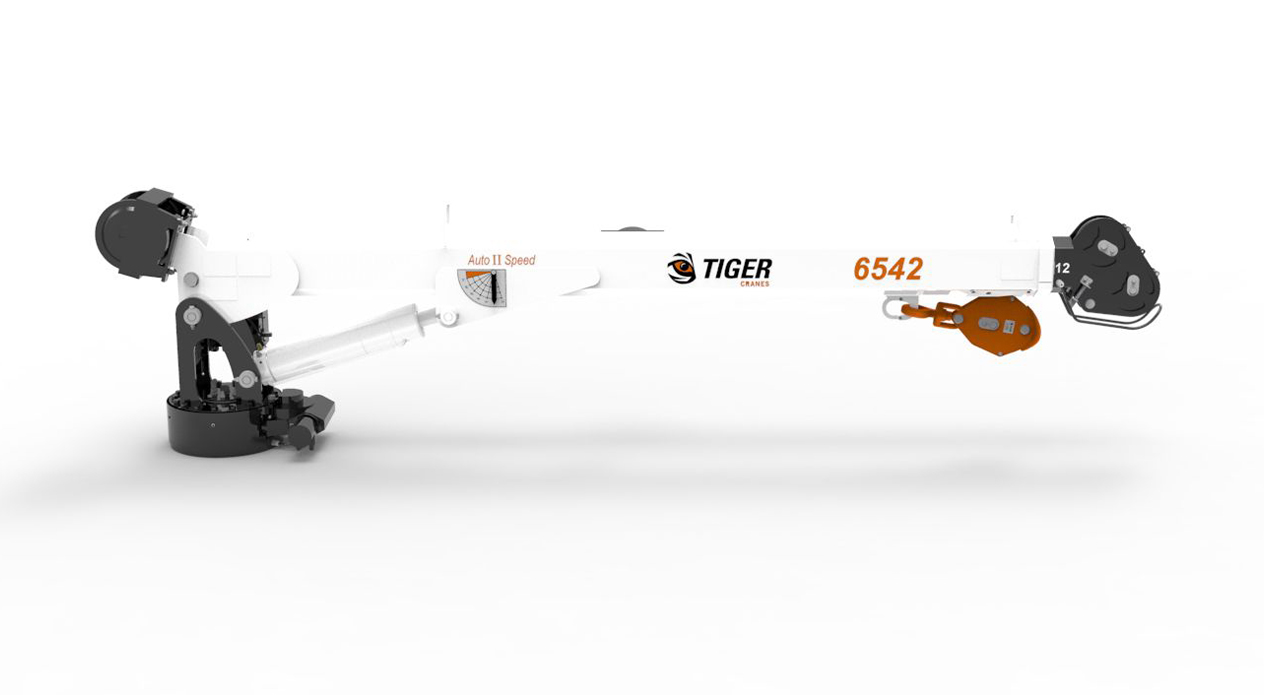

6542 TIGER CRANE
The 6542 Model Tiger Crane features 6,500 pounds of lifting capacity and a reach of 21 feet. This crane provides an extreme amount of lift capacity in a lightweight package at just 1,450 pounds. This full function hydraulic crane also features “Auto II Speed”, which automatically reduces crane speed when a load is detected on the hook giving the operator finite load control. The standard wireless remote control can also be tied into a CAN bus for upload to a customer’s fleet management software.
Standard Features
- 6,500 lb Lift Capacity
- 21 ft of Hydraulic Reach
- 4 Function Hydraulic Power
- Hex Boom with Low Profile Jib Head
- Boom Mounted Planetary Winch
- Wireless Proportional Control with Digital Crane Load Display
- Auto II Speed
Options
- LED Boom Tip Light

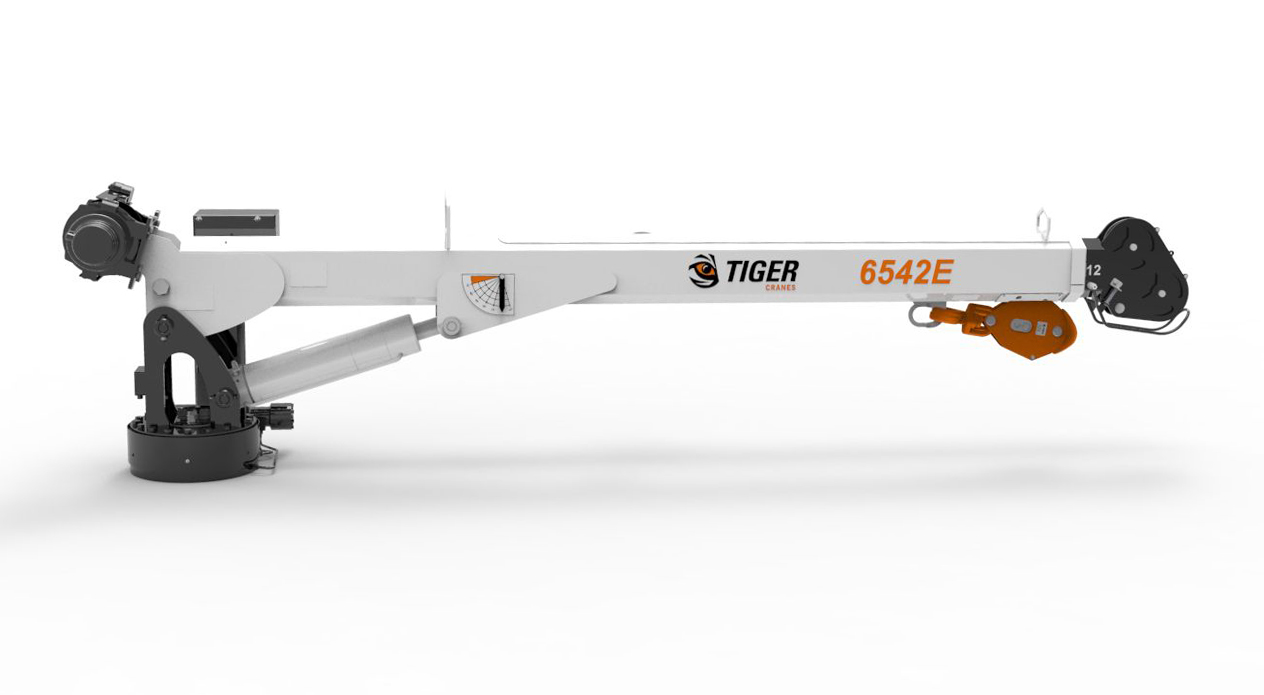

6542E/EP TIGER CRANE
The 6542E/EP Model Tiger Crane is a 6,500-pound capacity crane with 21 feet of reach. The “E” model is a fully functioning electric over hydraulic crane. The “EP” model adds optional proportional control to the package allowing for finite load control. This crane weighs in at 1,565 pounds and has a stored length of 159 inches. This crane also features a hex boom design adding strength and durability.
Standard Features
- 6,500 lb Lift Capacity
- 21 ft of Hydraulic Reach
- Hex Boom with Low Profile Jib Head
- 12 V DC Electric Planetary Winch
- 12 V DC Hydraulic Power Unit
- Full Power x 4 Functions
- Wireless Control
Options
- LED Boom Tip Light
- 25 ft Corded Remote
- Proportional Controls

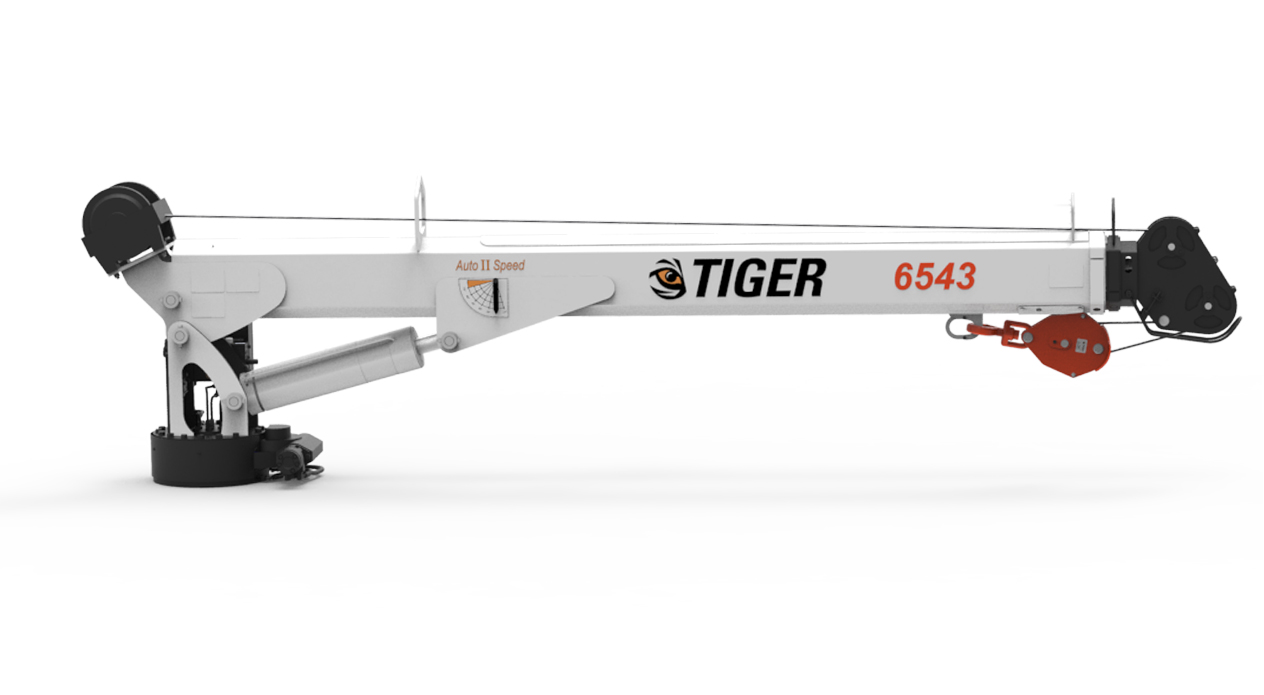

6543 TIGER CRANE
The 6543 Tiger Crane model has a three-section boom which allows operators to reach out to 30.5 feet horizontally. With a 43,000 ft-lb rating and 6,500 pounds lift capacity, the 6543 is a great choice for medium duty service trucks that need extra reach
Standard Features
- 6,500 lb lift capacity
- 30.5 ft of hydraulic reach
- 4 hydraulic functions
- Hex boom with low-profile jib head
- Boom mounted planetary winch
- Wireless proportional control with digital crane load display
- Auto II speed control
Options
- LED boom tip light

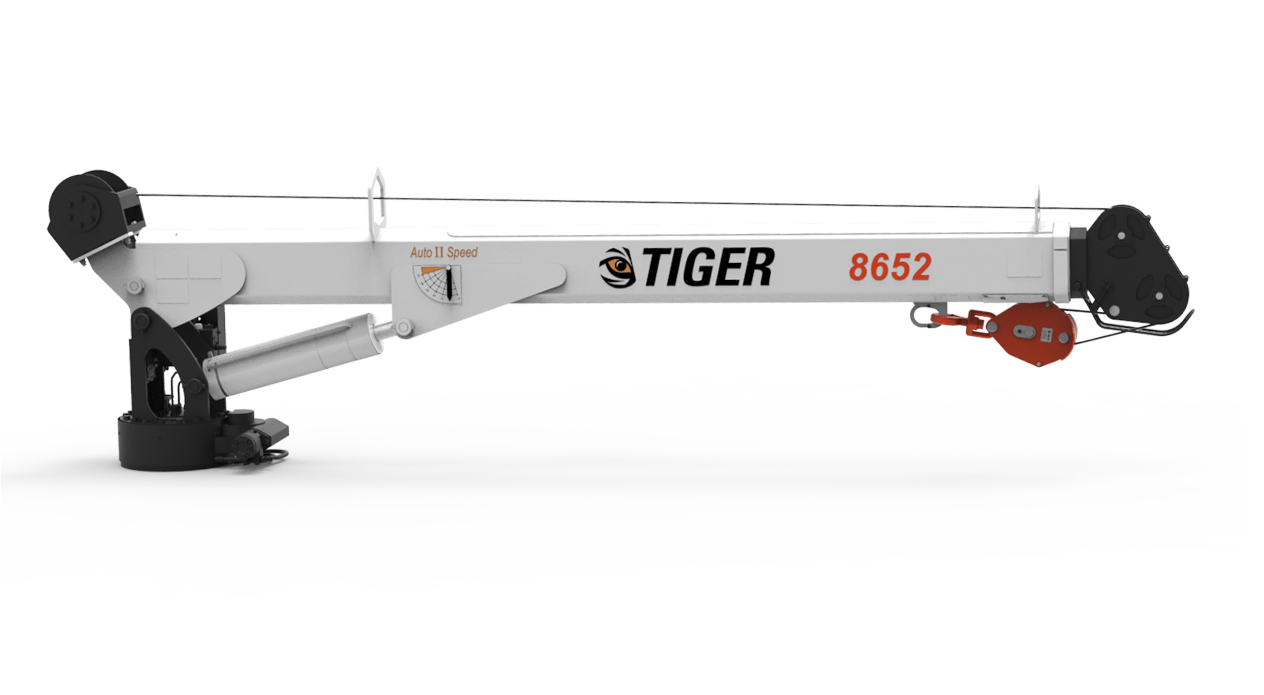

8652 TIGER CRANE
The 8653 is the largest crane available to be mounted on a 19.5k GVW chassis. With 8,600 lbs of gross lifting capacity, 21.5 ft of full hydraulic reach, Auto II Speed control and high speed planetary winch, the 8652 will be your jobsite workhorse.
Standard Features
- 8,600 lb lift capacity
- 21.5 ft of hydraulic reach
- 4 hydraulic functions
- Hex boom with low-profile jib head
- Boom mounted planetary winch
- Wireless proportional control with digital crane load display
- Auto II speed control
Options
- LED Boom Tip Light

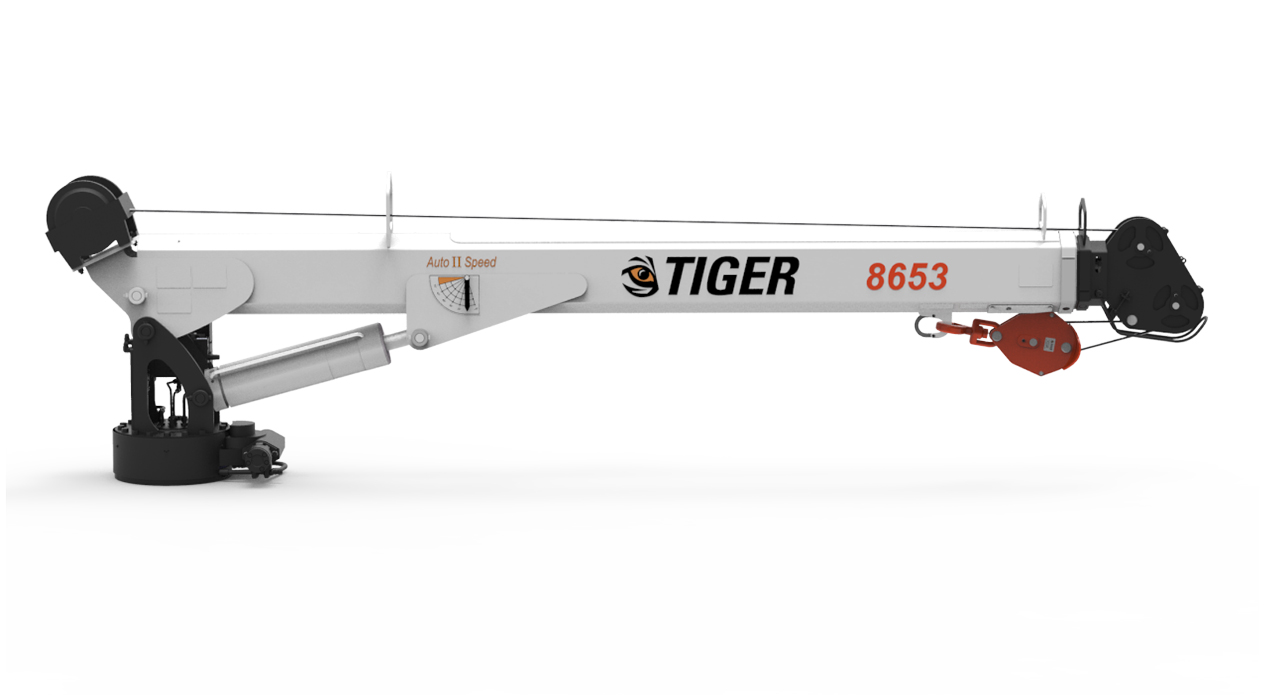

8653 TIGER CRANE
The 8653 is the perfect fit for those who need a long reach crane on a 19.5k GVW chassis. Featuring 8,600 lbs of lifting capacity, 30.5 ft of reach, and a wireless remote with digital crane load display, the 8653 will allow you to work confidently in long reach applications.
Standard Features
- 8,600 lb lift capacity at 5.8 ft
- 30.5 ft of hydraulic reach
- 4 hydraulic functions
- Hex boom with low-profile jib head
- Boom mounted planetary winch
- Wireless proportional control with digital crane load display
- Auto II speed control
Options
- LED boom tip light
1061 TIGER CRANE
The 1061 Model Tiger Crane is rated at 11,000 pounds of lifting capacity. It has 21 feet of reach and weighs just 2,070 pounds. This workhorse crane has full function hydraulic control and features “Auto II Speed”, which automatically reduces crane speed when a load is detected on the hook, giving the operator finite load control. This crane is a great fit for mounting on an 11-foot crane body, providing heavy duty versatility.
Standard Features
- 4 Function Hydraulic Power
- Hex Boom with Low Profile Jib Head
- Boom Mounted Planetary Winch
- Wireless Proportional Control with Digital Crane Load Display
- Auto II Speed Control
- Manual valve overrides
- Integrated oil filter
Options
- LED Boom Tip Light

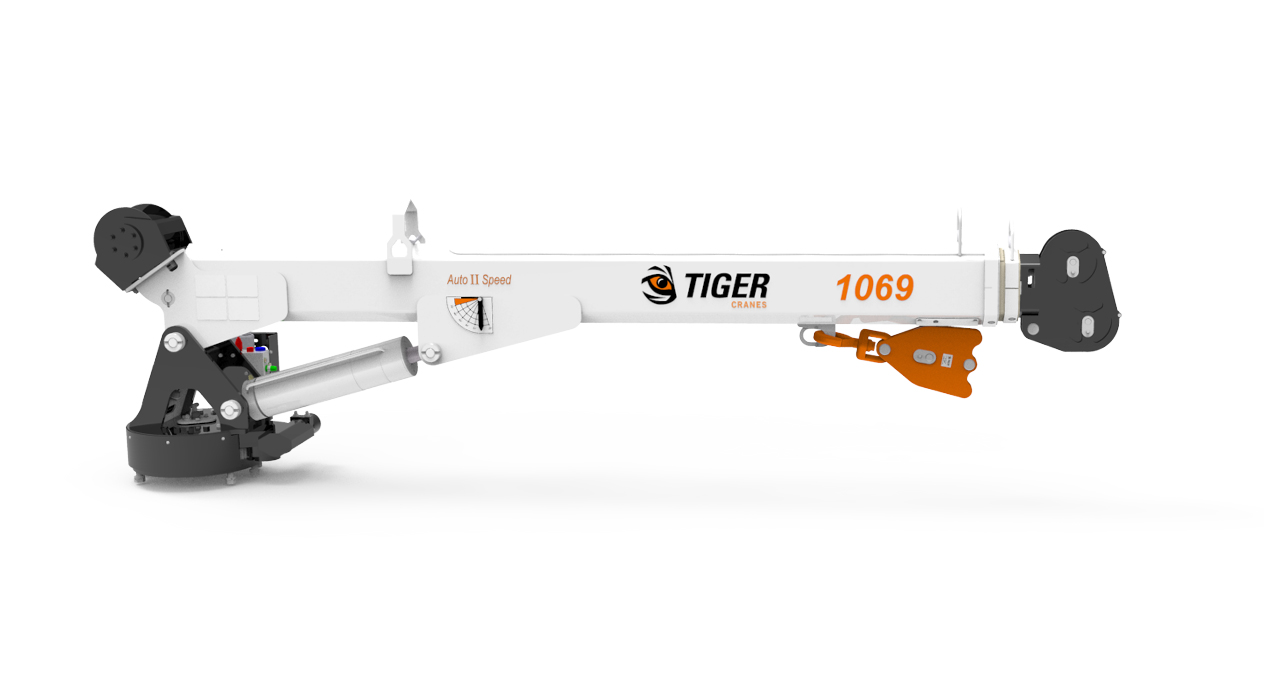

1069 TIGER CRANE
The 1069 Model Tiger Crane is rated at 11,000 pounds of lifting capacity and has a 29-foot reach. This full function hydraulic crane also features “Auto II Speed”, which automatically reduces crane speed when a load is detected on the hook, giving the operator finite load control. This crane allows you to work confidently with heavy loads in long reach applications. Optional boom tip lights keep light on the hook anytime during the operation.
Standard Features
- 4 Function Hydraulic Power
- Hex Boom with Low Profile Jib Head
- Boom Mounted Planetary Winch
- Wireless Proportional Control with Digital Crane Load Display
- Auto II Speed Control
- Manual valve overrides
- Integrated oil filter
Options
- LED Boom Tip Light

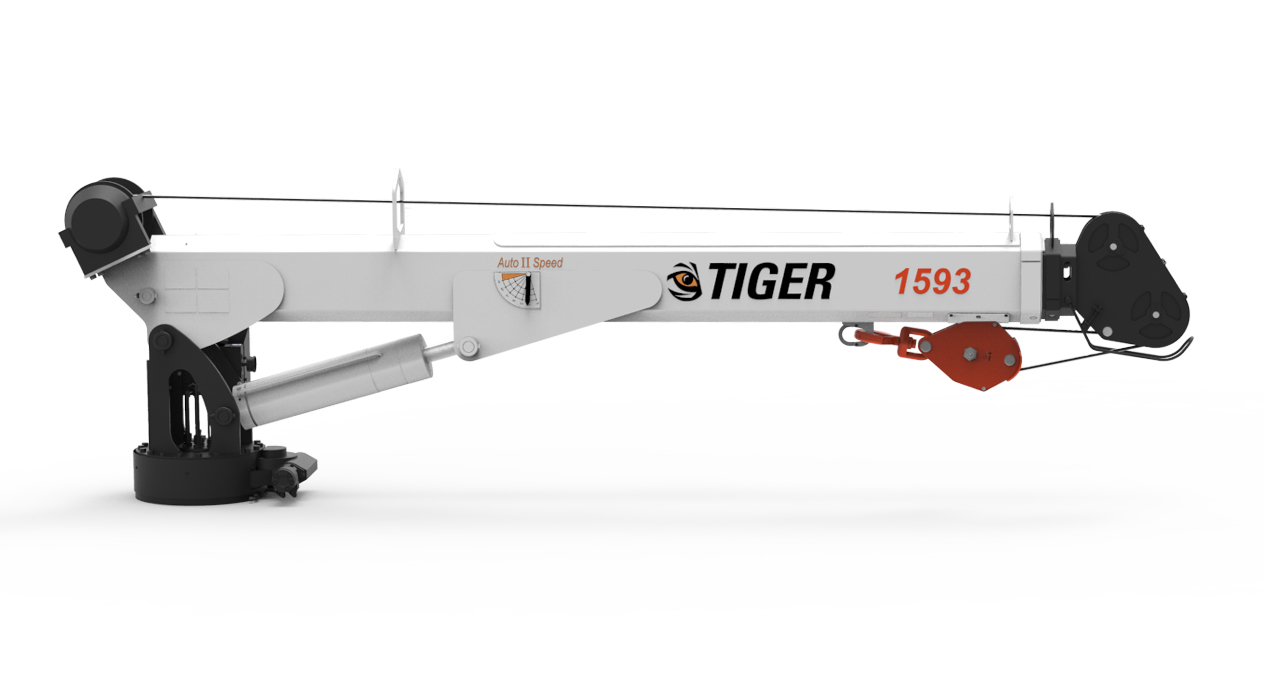

1593 TIGER CRANE
The 1593 crane is the largest Tiger Crane available. Designed for maximum loads and reach, the 1593 has 14,800 lbs of lift capacity and a 90,000 ft-lb crane rating. Whether you need big capacity or long reach, the 1593 has it all.
Standard Features
- 14,800 lb lift capacity
- 30.5 ft of hydraulic reach
- 4 hydraulic functions
- Hex boom with low-profile jib head
- Boom mounted planetary winch
- Wireless proportional control with digital crane load display
- Auto II speed control
Options
- LED Boom Tip Light

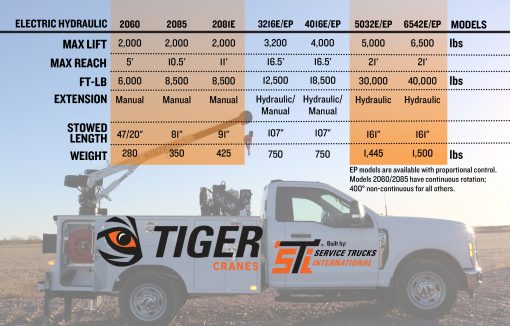

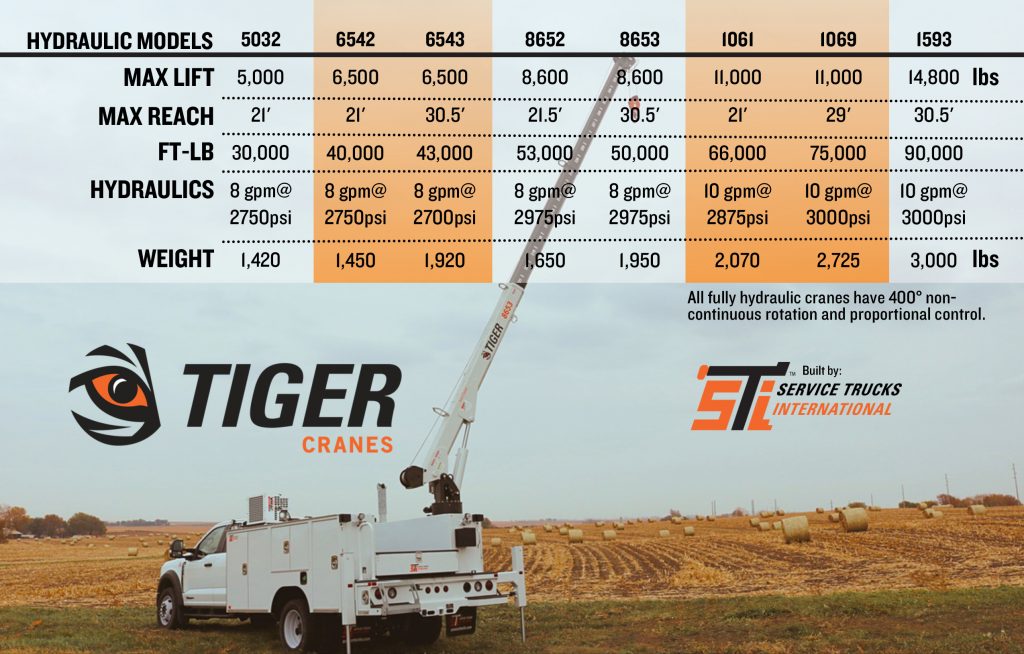

Weight Charts
Click to expand
