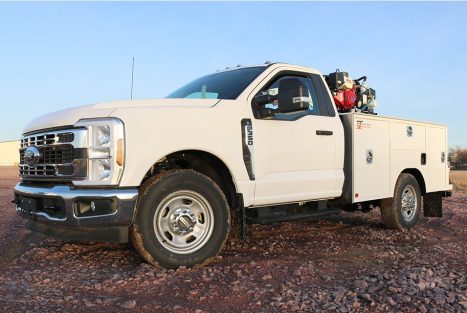

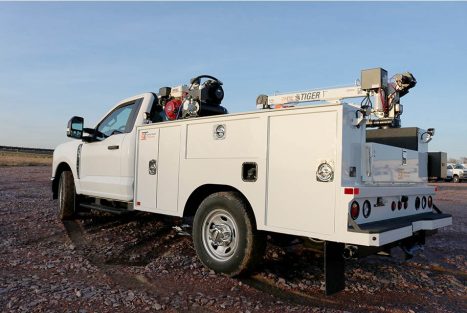

1540 Body

The 1540 from Service Trucks International brings impressive capability in a compact package, offering many of the same features found in larger models. Standard as a 9-foot crane body, the 1540 is purpose-built for 60-inch cab-to-axle single rear wheel (SRW) chassis applications.

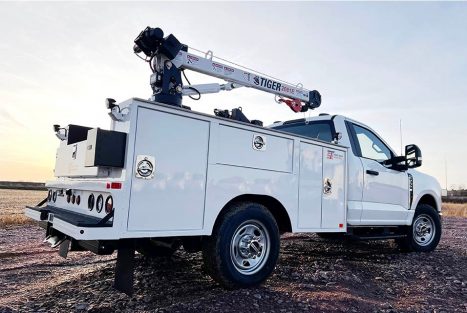

Designed with efficiency and functionality in mind, it features a transverse front compartment that accommodates dual 28-inch toolboxes within a 15-inch wide cabinet. With internal crane support and integrated outriggers, the 1540 is ready to be equipped with a 2,000-pound Tiger Crane—making it a strong, streamlined solution for operators who need performance in tighter spaces.

Standard Features

• Body, crane tower, and outriggers rated at 10,000 ft-lbs moment load
• 68.5 cubic feet of storage capacity
• Stainless steel wrap around chip guard full height on front of cabinets
• Full length rain gutter
• Galvanized infinitely adjustable shelving ( 6 shelf kit ) 250 lb capacity
• Fully sealed crane tower also functions as a storage cabinet
• 3-point locking door system features blind mounted door handles for security
• Polished stainless steel door handles feature compression latching
• (4) flush mounted cargo tie downs
• Stainless steel spring loaded door checks
• Body mounted back-up alarm
• Automotive bulb, steel-backed weather stripping between doors and cabinets
• Plug and play harnessing
• Body is fully sanded, chemically washed and prepped prior to paint
• 3-step paint process with PPG Delfleet Polyurethane topcoat – exterior and interior
• Body is fully undercoated
• LED Lights and reflectors are mounted per DOT specifications
• Standard mounting points for air compressor
• Mud Flaps
• STI 2 / 3 / 5 Warranty

Options

• Compatible Tiger Crane: 2081E
• Gas compressor
• Welder
• Cabinet strip lighting
• Rollout drawers & bolt bins
• LED interior/exterior lighting
• Bedliner
• Deck cover
• Lube kits
• High performance cabinet pressurization system with filtered air

Compatible Tiger Crane
