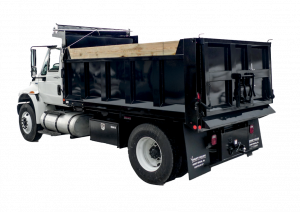

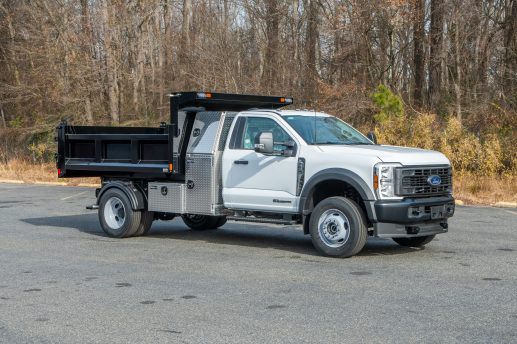

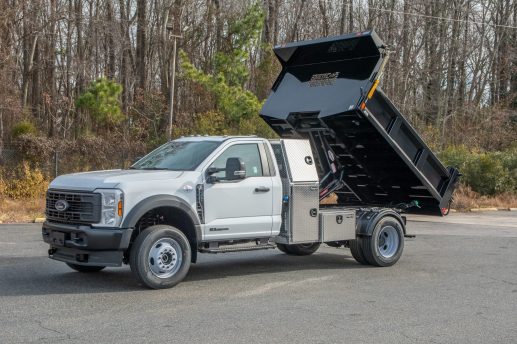

Shown Equipped With

• 12′ Super Duty Dump Body, 36″ Sides
• Standard Cab Shield
• Tailgate Metering Chute
• Hydraulic Front Mount Telescopic Hoist
• 3⁄4″ Pintle Hitch Plate
• Truck Step — 2 Rung Retractable Bolt-on

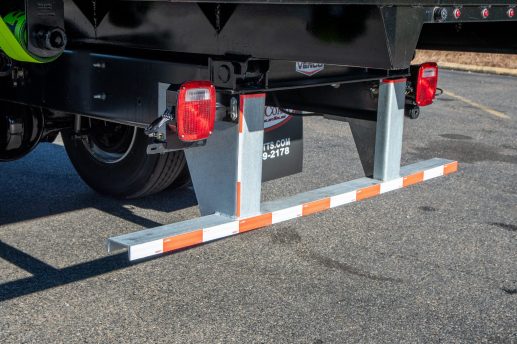

• ICC Bar
• Spreader Apron
• Underbody Toolbox — Steel 18x18x36

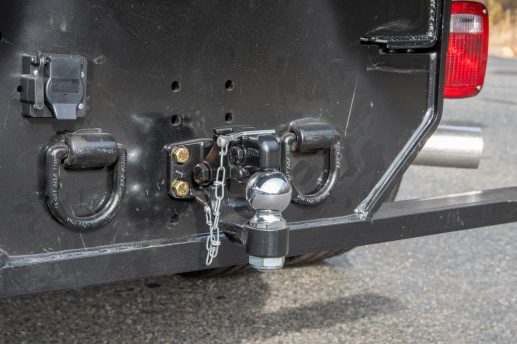

• 25⁄16″ Combo Pintle Hitch
• Backup Alarm
• Brake Controller
• Trailer Connector
• Pull-Style Spring Return Tarp Kit

Install Options

• Dump Hoist — Electric or PTO
• Rear Hitch Plate or Hitch Receiver
• Underbody Toolboxes
• Backup Alarms
• ICC Bar
• Brake Controllers
• Trailer Connectors
• Load Tarps — Manual or 12V

Tailgate Standard Features

• Constructed with 7 ga. steel
• Fully boxed frame with two 10 ga. horizontal and two 10 ga. vertical braces
• Standard height 10″ higher than sides
• Top pivot is bolt-in pin style
• Bottom has dump latch with release lever at driver’s side
• Standard with spreader chains and banjo eye chain holders on rear posts

Body Standard Features

• 7″ x 9.8 lb. structural channel long sills
• 4″ structural channel cross members 12 o.c.
• 7 ga. steel floor
• 7 ga. side walls with boxed tubing top rail and 10 ga. vertical braces
• 18″ cab shield, with brackets for side boards (various heights available)
• Rear posts 10″ higher than sides with brackets for side boards
• LED dump body light kit includes marker & clearance lights and one stop/turn/taillight per rear corner post with wiring harness. Meets (FMVSS108)

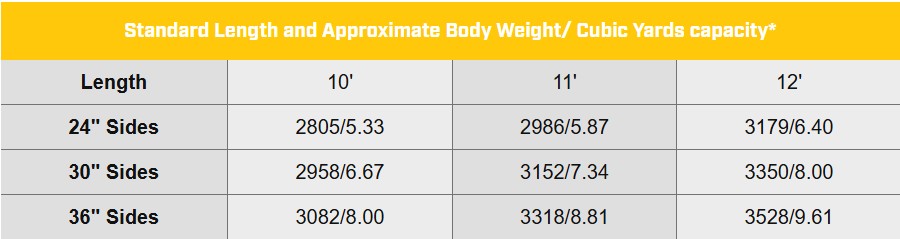

• Available with 24″, 30″, or 36″ sides
• Standard width 96″ outside
• Inside width 861⁄2″
• Primed and painted black (other colors available)

Options

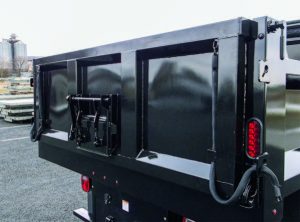

• 123⁄8″ x 131⁄2″ tailgate metering chute
• 36″ or 48″ cab shield
• Custom sizes
• Dump hoists — electric or PTO
• Load tarps — manual or 12V
• Spreader apron

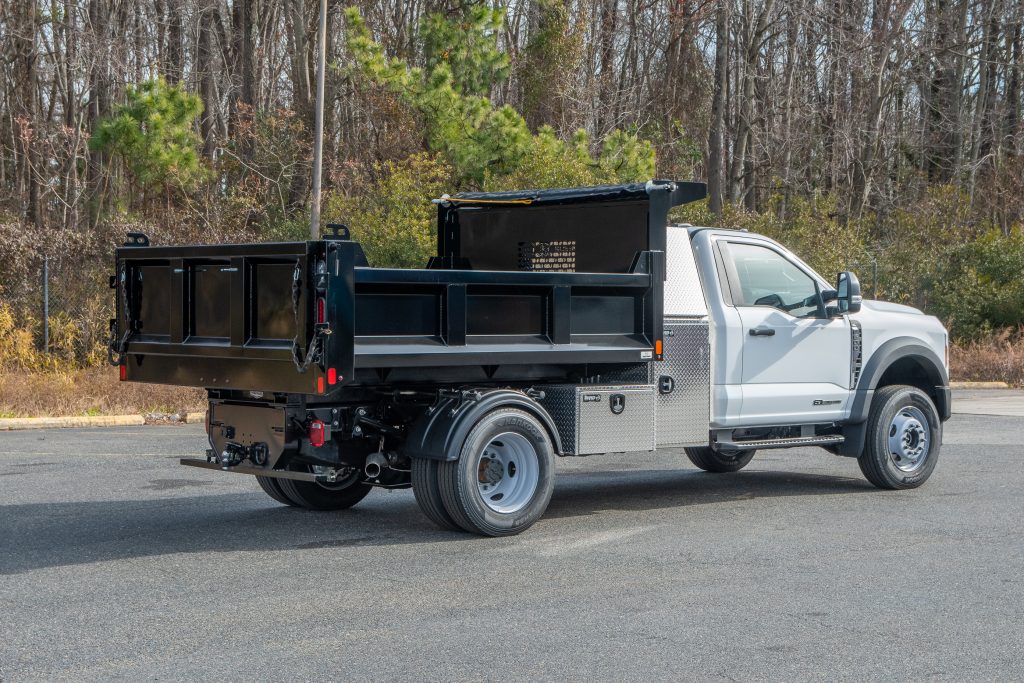

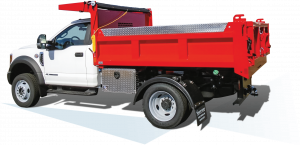

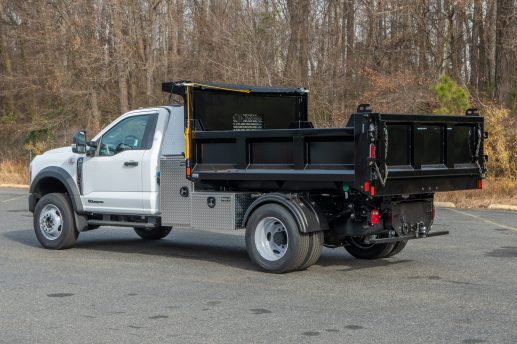

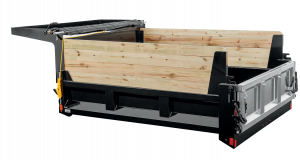

Shown Equipped With

• Optional manual
• Tarp and wood sides

Options

• Custom sizes and configurations available
• Dump hoists — electric or PTO
• Load tarps – manual or 12V

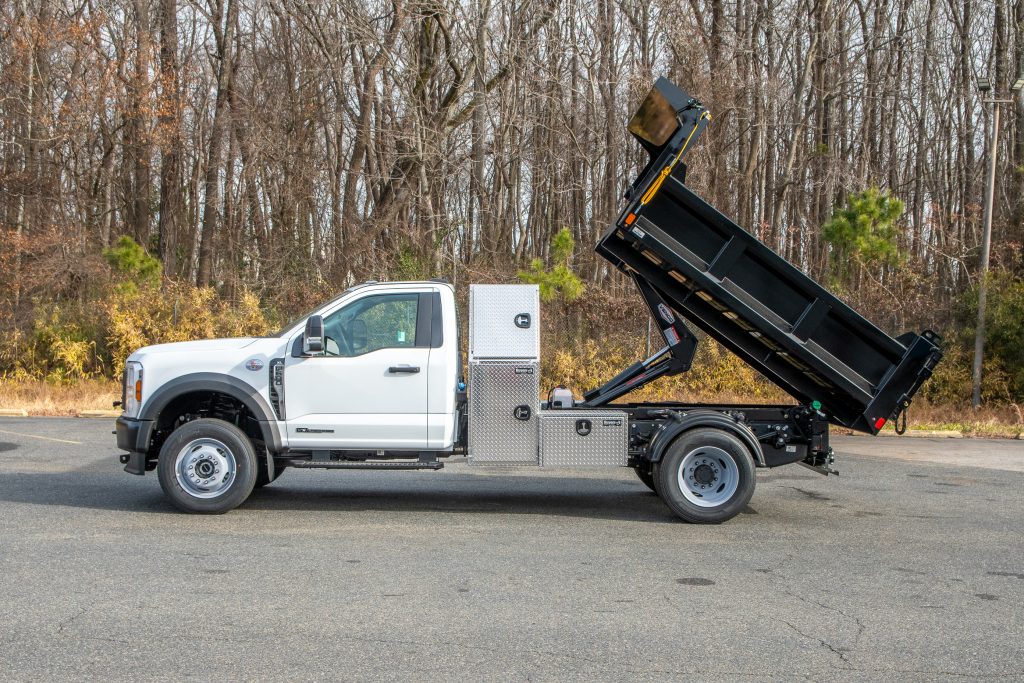

• Telescopic Electric hoist w/ compact dog box

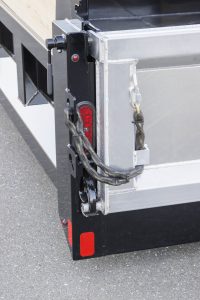

Alumnium Tailgate Standard Features

• Constructed with 3⁄16″ aluminum
• Fully boxed frame with two vertical posts
• Standard height — 6″ higher than sides
• Fully double-acting with bottom release lever at driver’s side, upper release is quick release screw pin style
• Standard with spreader chains and banjo eye chainholders on rear post

Body Standard Features

• 6″ x 8.2 lb. structural channel long sills
• 3″ structural channel cross members 12 o.c.
• 7 ga. steel floor formed with inner side wall
• 12 ga. outer wall sides with box formed top and V-formed outside wall with two vertical braces
• 36″ cab shield, with brackets for side boards (various heights available)
• Rear posts 6″ higher than sides with tall rear board pockets notched into rear post and 2″ lower than cab shield.
• LED dump body light kit includes marker and clearance lights and 1 stop/turn/tail/reverse light per rear corner post with wiring harness. Meets (FMVSS108)

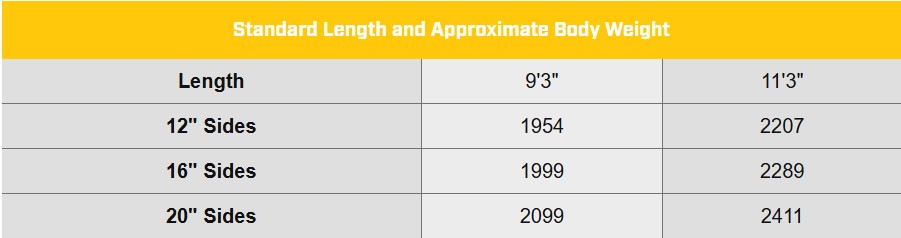

• Available with 12″, 16″ or 20″ sides
• Standard width 96″ outside
• Inside width 863⁄4″
• Primed and painted black (other colors available)

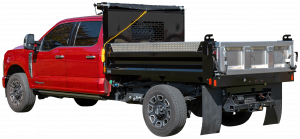

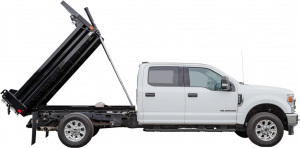

Shown Equipped With

• 8’8″ SRW Pickup Dump Body
• Electric Telescopic Hoist
• ICC Bar
• 2″ Hitch Receiver
• Backup Alarm
• Trailer Connector
• Aluminum Tailgate
• Manual Tarp Kitwith Pull Bar

Options

• Dump Hoist — Electric Telescopic
• Rear Hitch Plate or Hitch Receiver
• Underbody Toolboxes
• Backup Alarms
• ICC Bar
• Brake Controllers
• Trailer Connectors
• Load Tarps — Manual

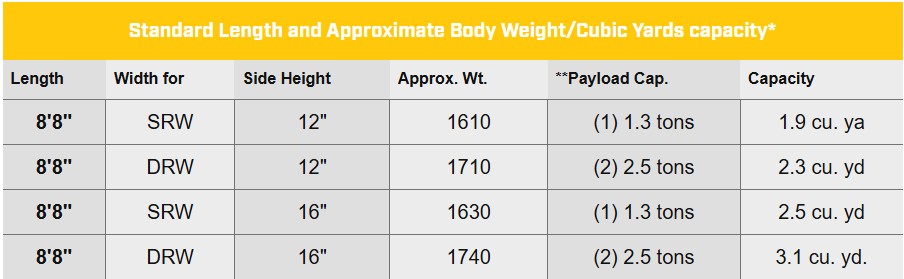

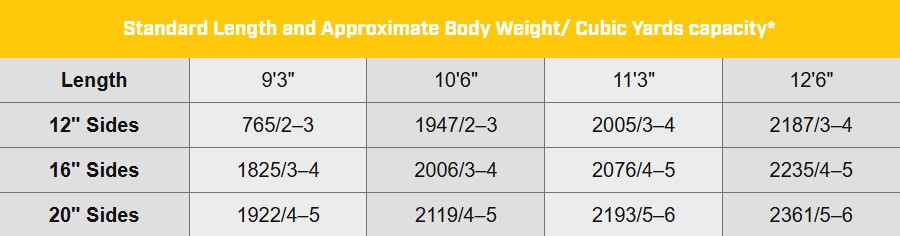

Standard Specifications & Options

Standard Features and Specifications

• Standard dump body includes 41″ bulkhead & led light kit
• Light kit consist of S/T/T & reverse lights 1-per side, marker & clearance lights with rubber grommets & wiring harness
• 5’X 6.7 Lb. Structural channel long sills
• 3″ Formed channel 12 ga. Crossmembers on 12 O.C.
• 12 ga. steel floor formed with inner side wall
• 12 ga. outer wall sides with box formed top and v-formed outside wall
• Front and rear posts 6″ higher than sides with sideboards brackets
• Available in 12″ & 16″ sides
• SRW standard width 81″ outside and 713⁄4″ inside
• Drw standard width 96″ outside and 863⁄4″ inside
• Painted black with primer undercoat & urethane top coat (other colors available)

Hoist & Subframe Standard Specifications

• 100″ long angle subframe designed for 2019 & newer Ford Box Delete 56’ CA chassis
• Body long sills sit down in angle subframe for a lower overall mounting height
• Mounting brackets and hardware included
• Front mount telescopic cylinder with 78″ stroke for a 47 degree dump angle
• 5 ton hoist and subframe
• Single acting 12 volt power unit installed in between subframe angles and body long sills
• Can be installed on basically any 56″ CA Box Delete chassis with slight modifications to subframe & mounting brackets

Aluminum Tailgate Specs

• Constructed with 3⁄16 ALUMINUM
• Fully boxed frame with 2 vertical braces
• Standard height 6″ higher than sides
• Double acting with bottom release pin at rearboth sides, upper release is quick-release screw pin style
• Standard with spreader chains and banjo eye chain holders on rear posts

(1) Payload capacity is approx. and based on Ford’s F350 SRW box delete truck with diesel, 4×4 and reg. cab with a 11,000 lb. GVW
(2) Payload capacity is approx. and based on Ford’s F350 DRW box delete truck with diesel, 4×4 and reg. cab with a 14,000 lb. GVW
** Payload capacity represents maximum allowable weight of people & cargo and is reduced by optional equipment weight.

True payload must be determined after complete upfitted truck is weighed.

• Final truck installation requirements may be chassis OEM box delete wire harness kit, backup camera kit, etc.
• Truck may also need to be reprogrammed by a dealer to accept it as a box delete finished truck
• This should not be any different than any other box delete install such as a service body

Options

• Fold down sides
• No tarp kit
• Tapered bulkhead instead of cabshield

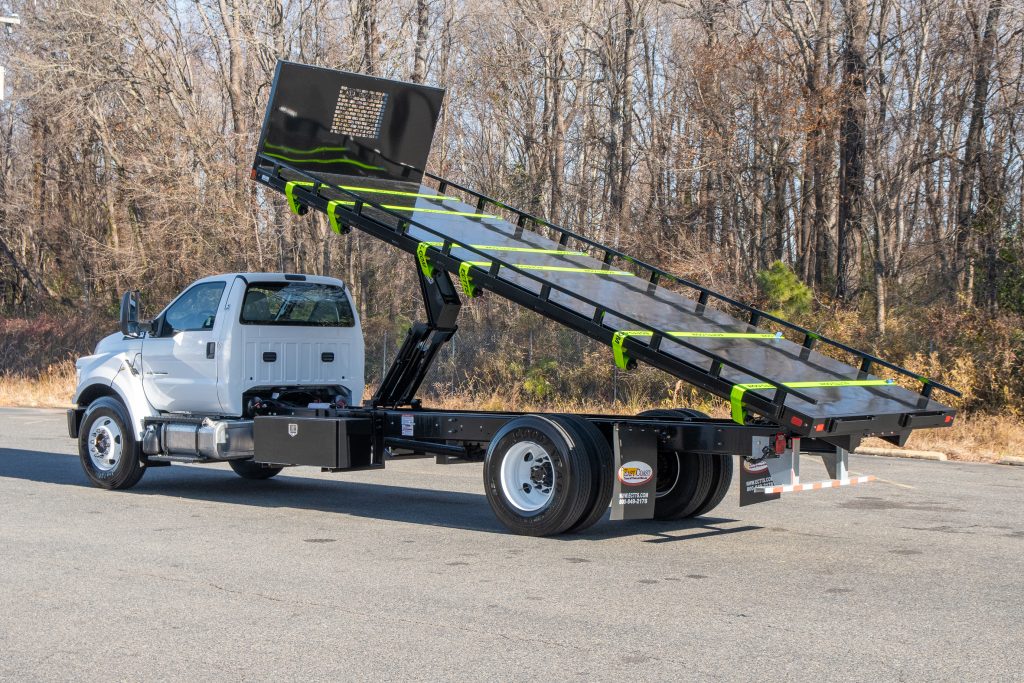

Shown Equipped With

• 24′ Body
• ICC Bar
• Backup Alarm
• Twin Telescopic
• Underbody Hoist

Install Options

• Rear Hitch Plate or Hitch Receiver
• Underbody Toolboxes
• Dump Hoist – Electric or PTO
• Backup Alarm
• Brake Controller
• Trailer Connector
• Load Tarps – Manual or 12V
• ICC Bars
• Lift Gates

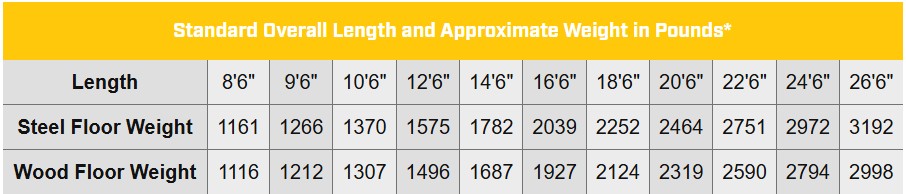

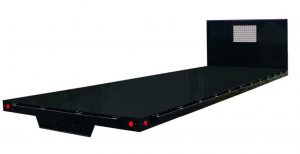

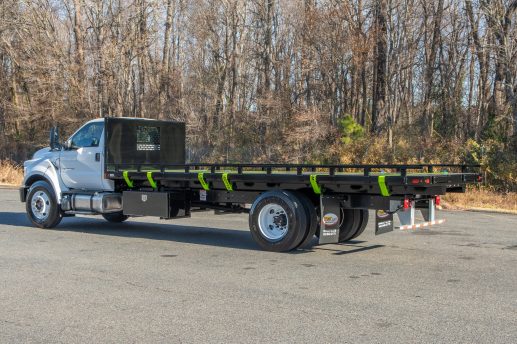

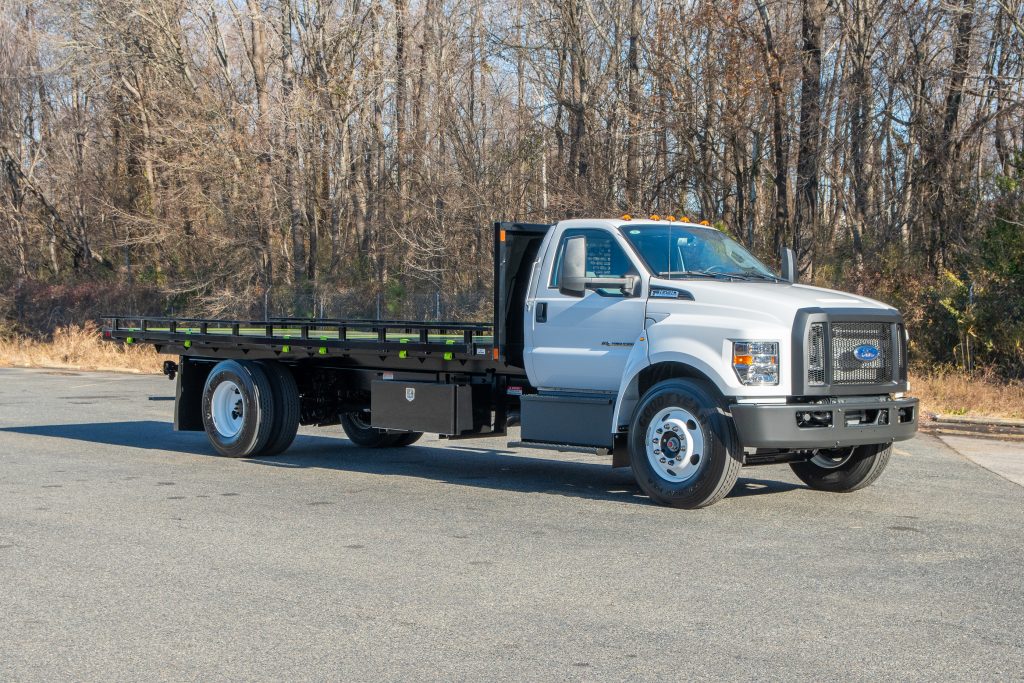

Standard Features

• 48″ high weld-on bulkhead with screened window. Also available in 54″, and 60″ high
• 3⁄4″ LED Marker and clearance light kit meets (FMVSS108) Includes wiring harness
• Primed and painted black (other colors available)
• Structural channel long sills 12’6″ – 18’6″ • 7″ x 9.8 lb. channel | 20’6″ – 26’6 ” • 8″ x 11.5 lb. channel
• 4 ” Structural channel cross members 12″ o.c.
• 6″ Structural channel rear and side rails
• 7 ga. smooth steel floor
• 3⁄16″ heavy-duty exterior stake pockets with 3⁄8″ x 3″ rub rail on sides and rear
• Standard overall width 96″ (optional 102″ wide)

Options

• Floor: Shiplapped pine, apitong hardwood, tread plate, or anti-slip floor paint
• Full rear 10” drop light apron — Includes oval stop/tail, turn, reverse, and license plate lights with wiring harness
• Cab shield (standard sizes 18″, 36″, & 48″)
• Custom sizes and configurations available
• Triple window in bulkhead

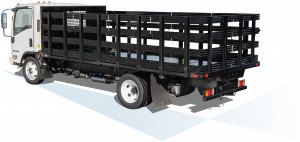

Stake Racks

• 42″ high 4 slat racks
• Constructed with 11 ga. reinforced hat stakes and 16 ga. roll formed slats
• Spring-loaded latch system on stakes assures secure attachment to body
• Optional rear swing out racks with bolt-on rear post
• Rack weight per 4′ section 4 slat — 42″ high, 49 lbs.

Options

• Gooseneck Access/Hitch
• Toolbox Packages
• Fold Down Sides and Tailgate
• Lift Out Racks & Ladder Racks

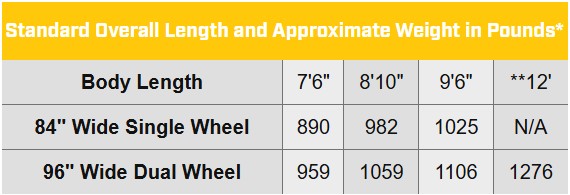

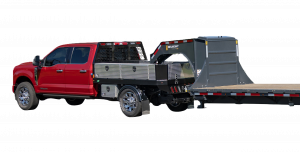

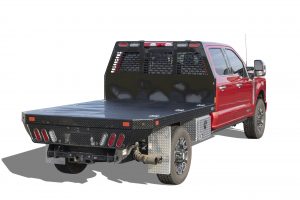

CPB1000 Specifications

• 5″ formed channel long sills
• 3″ Formed channel 12 ga. cross members 12″ o.c.
• 12 Ga. diamond plate floor with formed side rails
• 3⁄16″ Exterior stake pockets with 1⁄4″ x 2″ tie rail on both sides & rear
• Fuel fill cutout in driver’s side side rail
• 37″ or 39″ High tapered bulkhead with screen window and center top cutout for cab rear stop light
• LED light kit includes: 6″ oval S/T/T and reverse light in rear apron and bulkhead, 3⁄4″ rear and side marker and clearance lights, license plate light, and wiring harness. Meets (FMVSS108)
• Primed and painted black (other colors available)
• Chassis specific mounting brackets and hardware included. Ford Ram & GMC 2019 or newer

Cab Chassis Specifications

Same as above, except:

• 4″ Structural channel long sills
• No fuel fill cutout (unless requested with location specified)
• No mounting kit

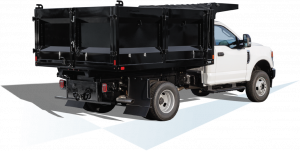

Standard Features

• Primed and painted black, (other colors available)
• Standard size is 30″ high, 96″ wide
• 891⁄4″ inside width
• 3 x 1 tube 1⁄8″w on bottom of chipper top with 3⁄4″ pipes welded on, weld 3⁄4″ pipes on inside of top rail on body. Then latch in place with 3⁄4″ pins
• 3⁄4 — #9 mesh screening in every panel
• 14 ga. sheet metal

Options

• 26″ overhang to be used with backpack toolbox
• Top ladder rack with access steps and grab handle
• Custom width and length
• Inside rubberized coating
