| MODEL | MAX.CAPACITY(LB) | OPTIMUM BODY LENGTHS (FT) | MAX.TIPPING ANGLE (º) | HOOK HEIGHT (IN) | CA / CT RANGE (IN)MIN. GVWR (LB) | FRAME HEIGHT (IN) | CLEAR FRAME (IN) | CLEAR FRAME (IN) | WEIGHT (LB) |
|---|---|---|---|---|---|---|---|---|---|
| OPT15S-4300 | 30,000 | 14-16 | 50 | 54/62 | 152 CA / 130 CT | 35,000 | UP TO 44 | 188 | 3,585 |
| OPT15S-4600 | 30,000 | 15-17 | 50 | 54/62 | 162 CA / 140 CT | 35,000 | UP TO 44 | 198 | 3,650. |
| OPT15S-5600 | 30,000 | 18-20 | 50 | 54/62 | 200 CA / 176 CT | 35,000 | UP TO 44 | 236 | 4,100 |
Tarp Installation – Remember to add 12” to the CA / CT and Clear Frame measurements listed above for best weight distribution. Basic sales drawings for each hooklift model are available upon request (intended for illustration purposes only). Custom weight distributions may also be requested (allow 2-3 weeks). PF = performance package available. The performance package is OPTIONAL, consists of fast tipping (25 sec.), fast lowering (30 sec.), fast off-load (35 sec.) and auto sequence (one touch loading and unloading).
| STANDARD PRODUCT FEATURES | OPT SERIES |
| Electric Cab Control | X |
| High Tensile Steel Construction | X |
| Dual Pivot Design (true dumping) | X |
| Hook Safety Latch | X |
| Body Up Warning Light | X |
| Sensors / Wiring – IP67 | X |
| Zinc Primer / Top-Coat Black | X |
| Proportional PLC Controller (smart system) | |
| Soft Lowering (dump cycle) | X |
| Friction Relief (loading / unloading) | |
| Float Function (rough road assist) | X |
| Pull Limiter (manage short bodies) | X |
| Solid Cast Inserts (critical stress points) | X |
| Product Warranty (all parts / structural) | 2-yr / 3-yr |
OPTIMA & ULTIMA – Standard Features & Benefits
- Soft Lowering
- System automatically slows lowering from the dump cycle (last 12” of travel)
- Float Function
- System supplies electricity to the lift cylinders while truck is powered on, allowing them to float in
and out during transport. - Act as oversized shock absorbers, preventing premature stress cracks due to rough or off-road
forces. This feature alone doubles the life expectancy of the hooklift and chassis frames. - Provides a noticeably smoother ride for the operator
- System supplies electricity to the lift cylinders while truck is powered on, allowing them to float in
- Pull Limiter
- Notifies the operator when the body is secured inside the rear locks
- Double feature, stops shorter than intended containers in a desired location. Install locking plates
on short containers / bodies where needed.
- Solid Casting
- Four times stronger than plate steel, installed at every critical stress point on the system
- Does not fatigue as easily as adding additional plate steel for reinforcement
- Less weight than stacking additional plate steel for reinforcement

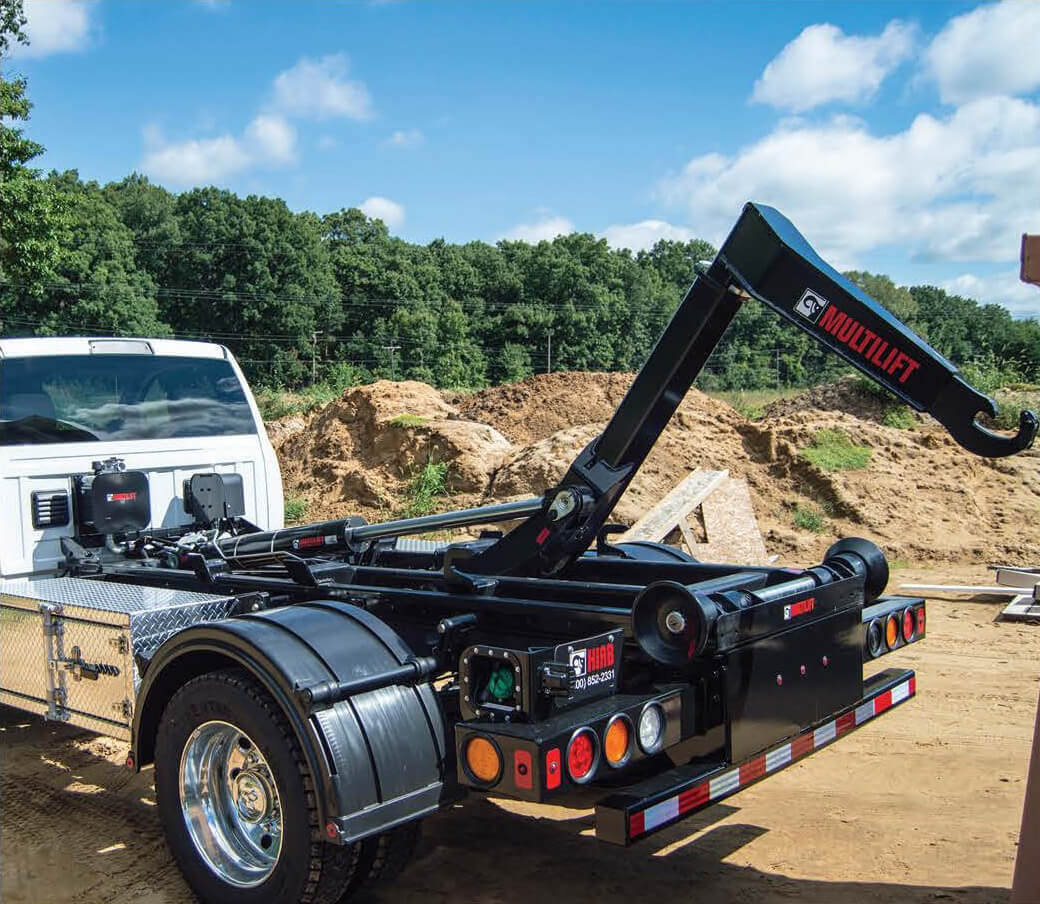

OPTIMA Model
