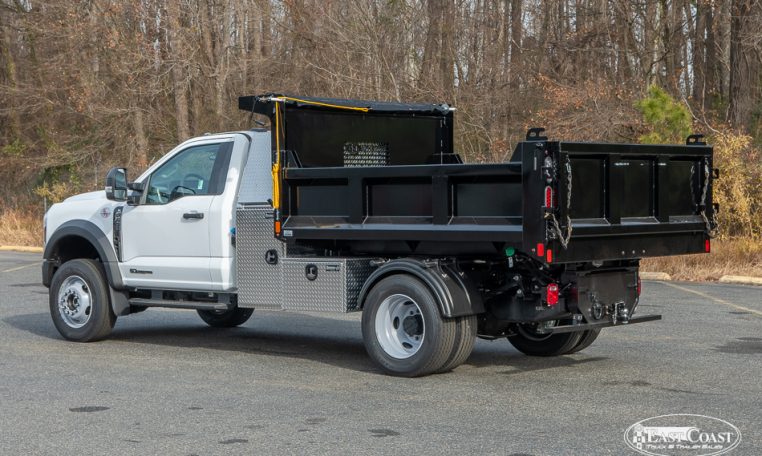

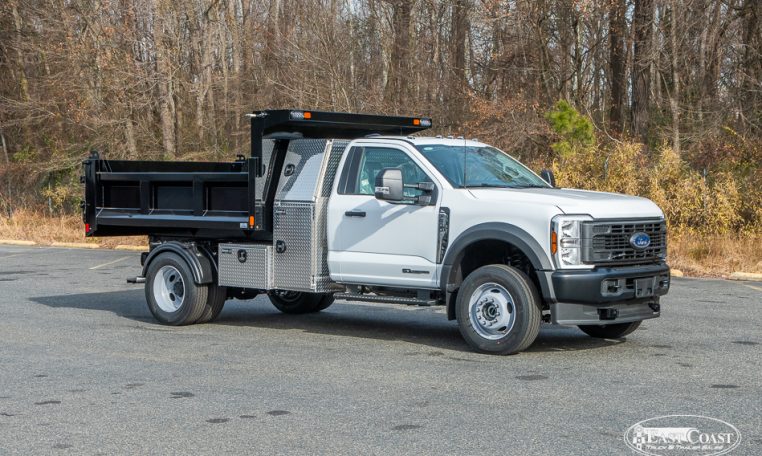

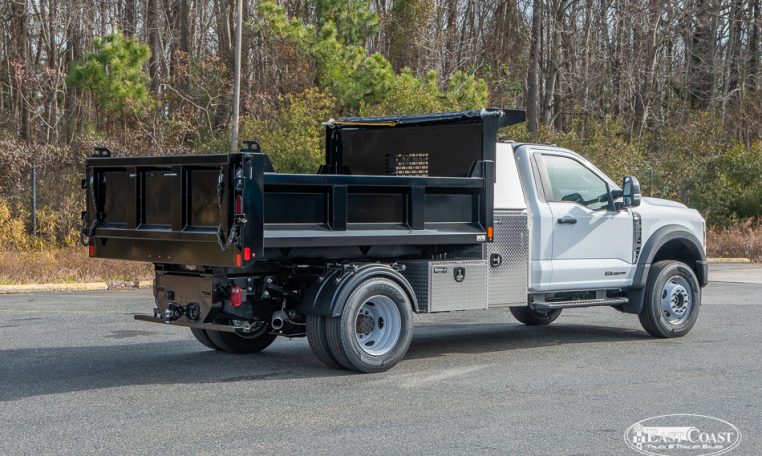

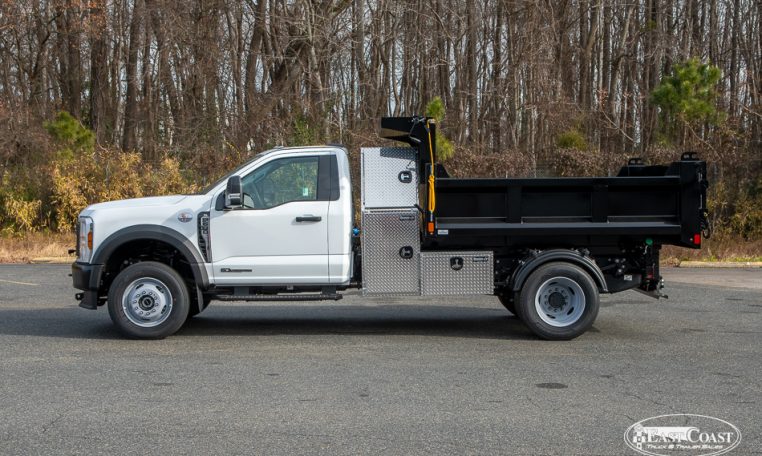

Heavy-Duty Steel Dump Body for Sale

Built for Strength, Control, and Everyday Productivity

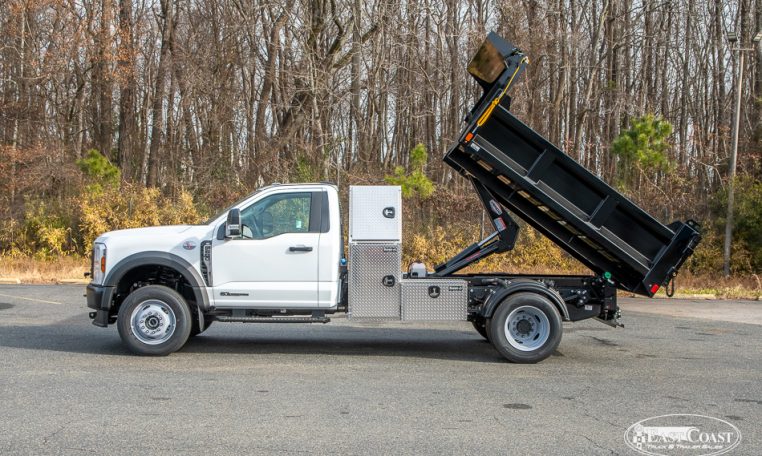

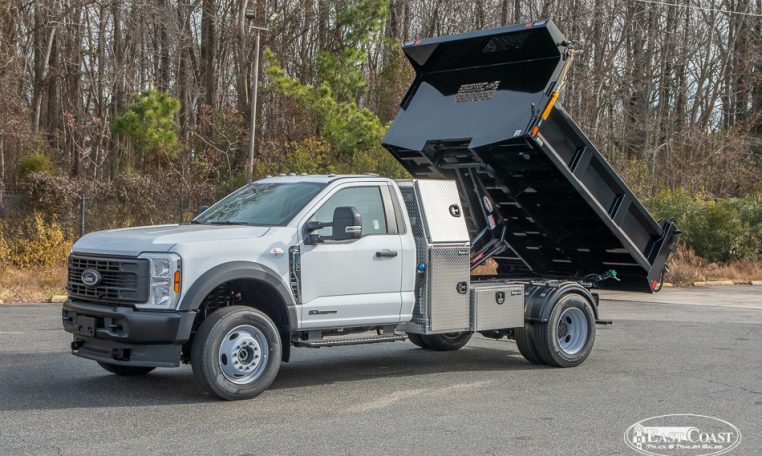

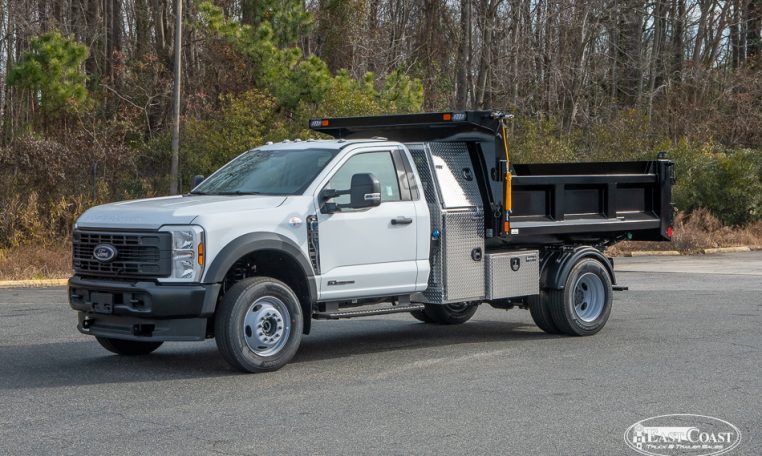

This heavy-duty steel dump body is engineered for contractors, municipalities, and fleet operators who need dependable performance in demanding conditions. Constructed with reinforced steel components and a fully boxed frame, this dump body delivers consistent strength, controlled dumping, and long-term durability for hauling aggregate, debris, asphalt, and bulk materials.

Designed to integrate seamlessly with vocational chassis, this dump body balances structural integrity, safety compliance, and practical jobsite features—making it a smart solution for both replacement and new installations.

Heavy-Duty Dump Body Construction

• Constructed using 10-gauge steel for superior wear resistance

• Fully boxed frame with two 12-gauge vertical posts to reduce flex under load

• Standard height design extends 6 inches higher than the sides to improve load retention

This reinforced construction supports heavy payloads while maintaining consistent performance over repeated dump cycles.

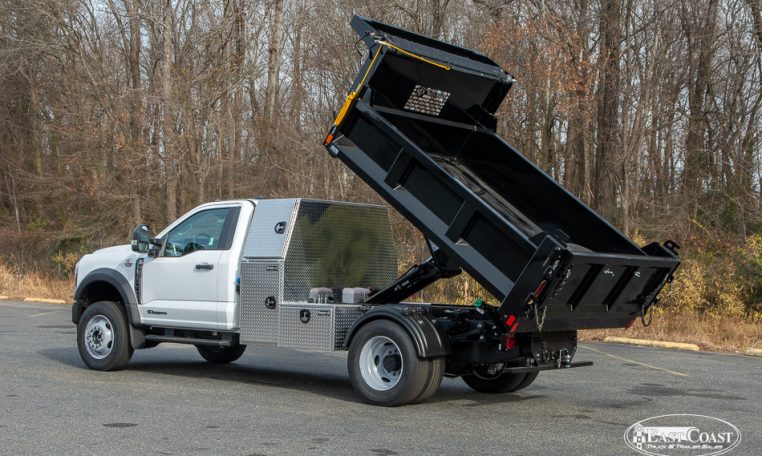

Dump System & Material Control

• Fully double-acting dump system for smooth, controlled operation

• Driver-side bottom release lever for convenient access

• Upper quick-release screw pin for fast operation and serviceability

• Spreader chains with banjo eye chain holders mounted on the rear post

• Integrated metering chute for precise material flow

These features provide better control during unloading and reduce material spillage on job sites.

Structural Body Design

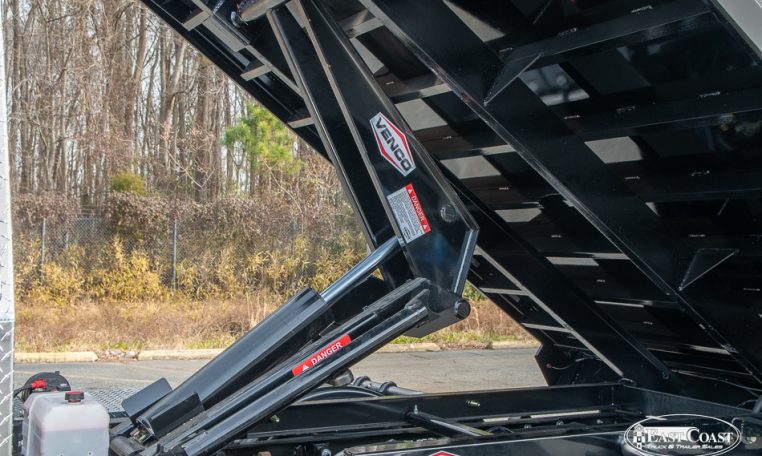

• 6″ x 8.2 lb. structural channel long sills

• 3″ structural channel cross members, spaced 12 inches on center

• 10-gauge steel floor, formed with an integrated inner side wall

• 12-gauge outer wall sides with:

  • Box-formed top rail

  • V-formed exterior wall

  • Dual vertical reinforcement braces

This design maximizes body strength while maintaining consistent wall alignment and load distribution.

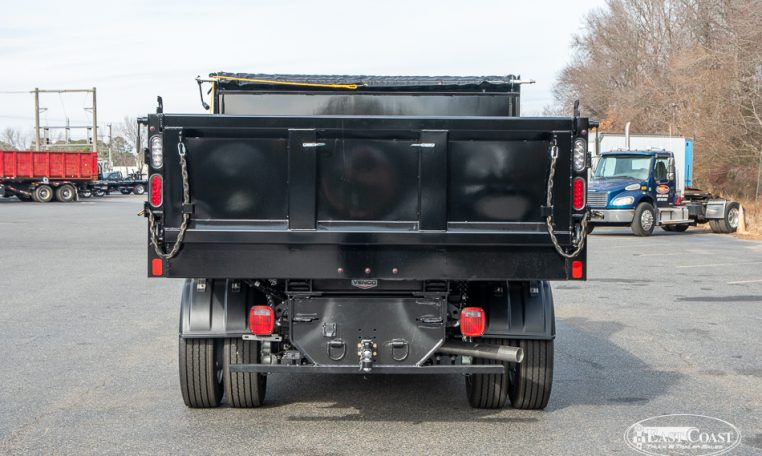

Cab Shield & Rear Protection

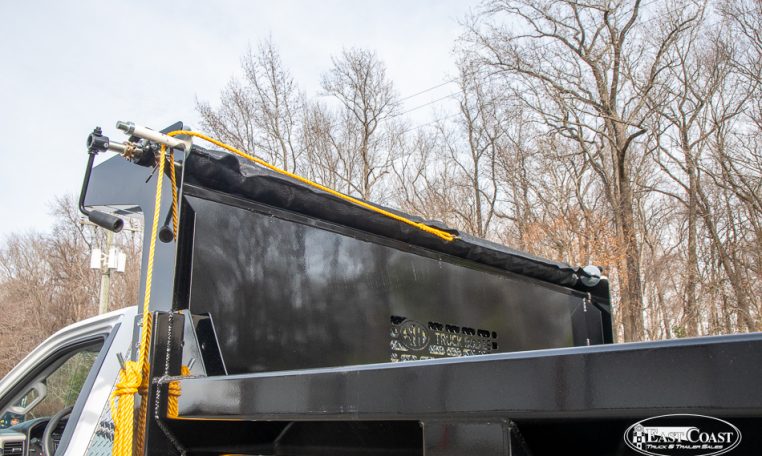

• 36-inch cab shield for added cab protection

• Sideboard brackets included for flexible material containment

• Rear posts extend 6 inches above side height, also equipped with sideboard brackets

• Compatible with multiple sideboard height options

Ideal for operators who need adaptability for varying materials and seasonal applications.

Dimensions & Configuration Options

• Outside width: 96 inches

• Inside width: 86¾ inches

• Available side heights:

  • 12 inches

  • 16 inches

  • 20 inches

• Primed and painted black as standard

• Additional color options available

These sizing options allow the dump body to fit a wide range of truck chassis and hauling requirements.
