14673N/14674N

2025 Ford F-600 & STI 2250

CALL PORTSMOUTH (757) 465-2200 | CALL MANASSAS (703) 415-9333

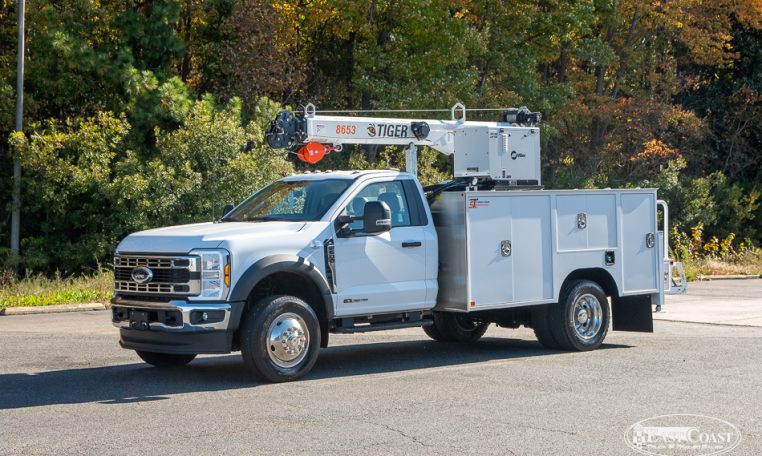

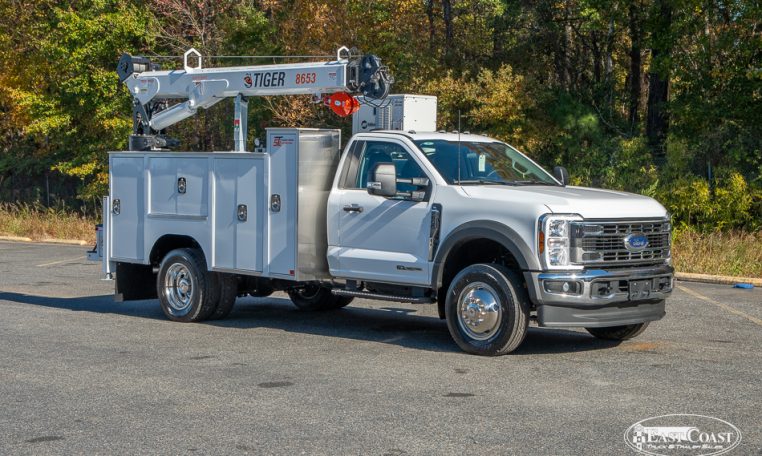

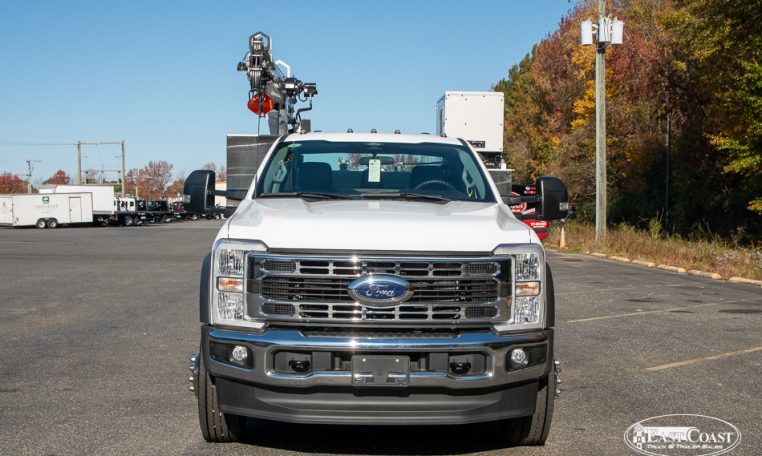

This 2024 Ford F-600 is built to perform, featuring a clean white exterior and powered by a 6.7L Powerstroke V8 diesel engine delivering 330 horsepower. Paired with a 10-speed TorqShift automatic transmission and a 4×4 drivetrain, this chassis is ready to handle demanding work environments with reliable strength and control.

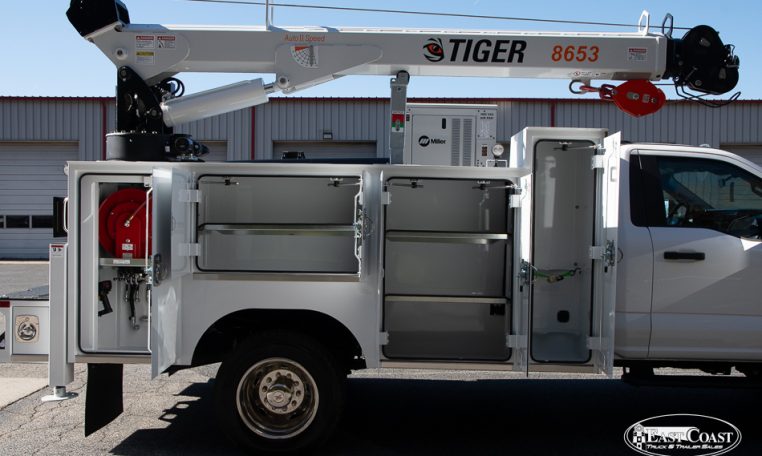

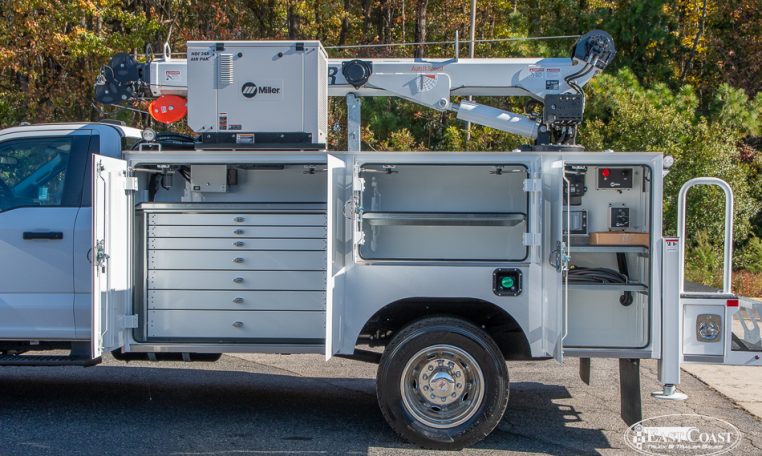

Mounted on this capable platform is the STI 2250, the most popular body in Service Trucks International’s lineup. Purpose-built for 23,000 GVWR chassis, the 11-foot body is designed for everyday durability and organization, with 50-inch high cabinets and a dedicated 60-inch compartment for oxygen and acetylene bottle storage—providing secure, accessible space for the tools you depend on.

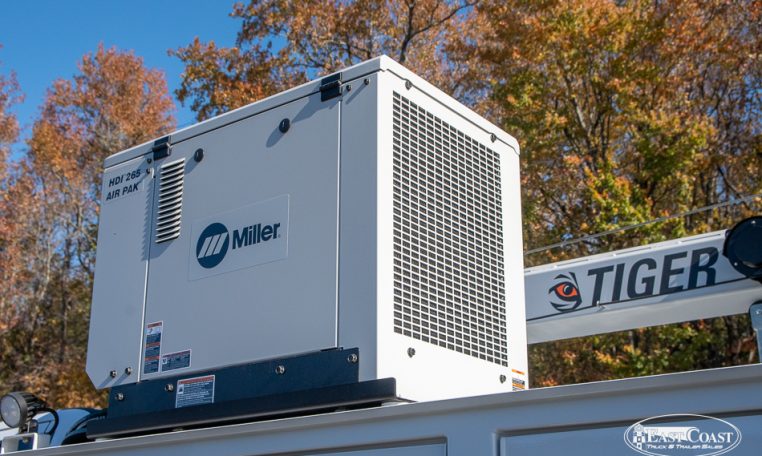

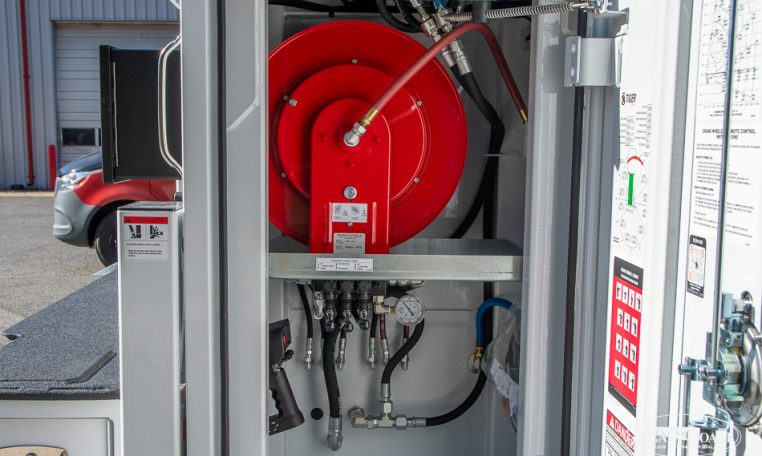

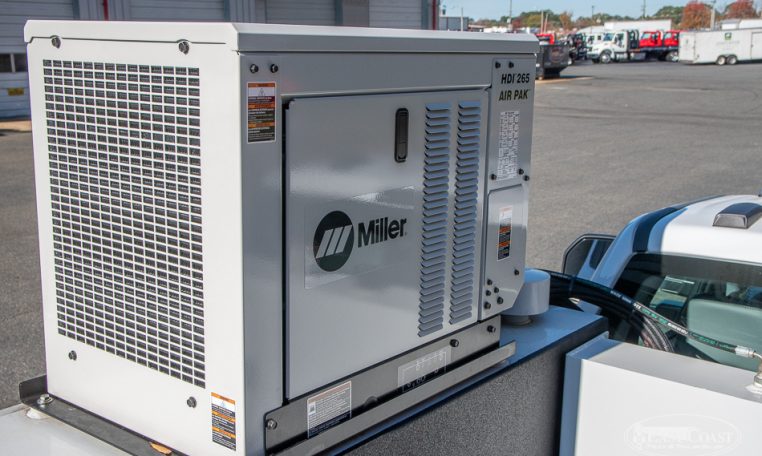

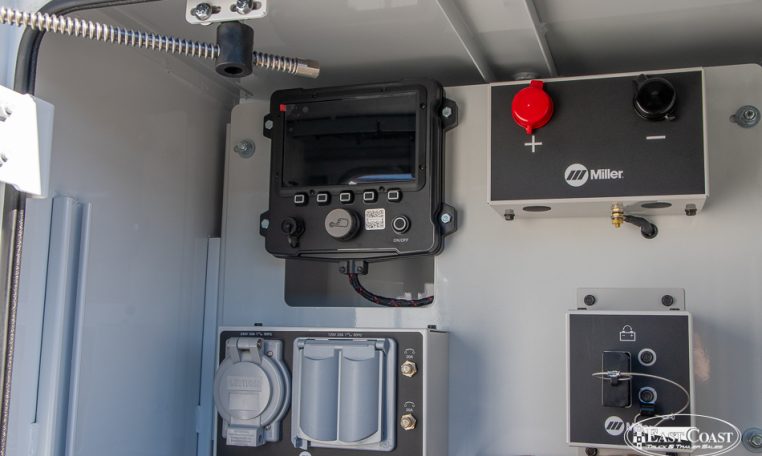

The mounted HDI 265 Air Pak is built for demanding work truck applications, delivering 30–265 amps of DC welding power with a 265A @ 30V, 100% duty cycle output. It supports a 1/4 in. (6.4 mm) rated carbon diameter and provides reliable auxiliary power with 7,000 W continuous and 7,500 W peak single-phase output. Noise levels remain manageable at 62 dB (no load) and 74 dB (under load) measured at 7 meters. The unit features a Rotorcomp compressor offering 40 cfm of free air delivery, 90–175 psig working pressure, a 100% duty cycle, and automatic shutdown at 200 psi for protection. Hydraulic performance includes a 3,000-psi max pressure and an 11 gpm supply requirement, while onboard charging supports 12/24-volt systems up to 150 amps.

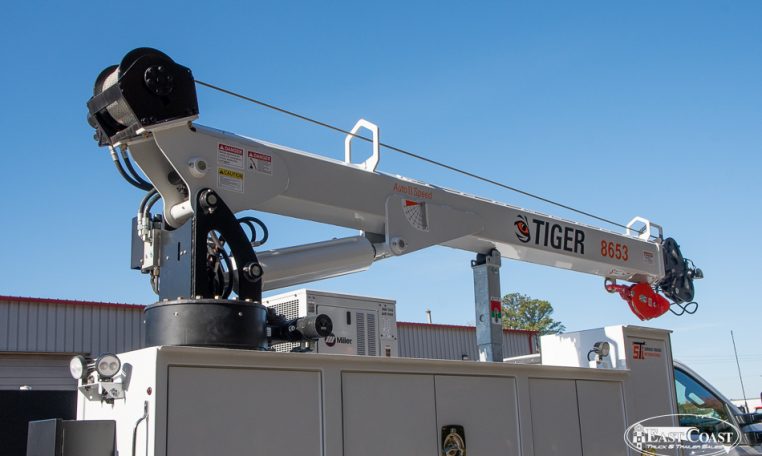

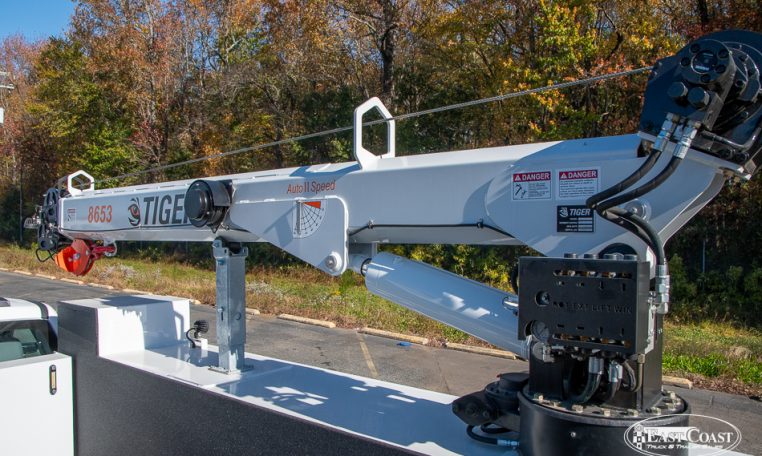

This setup is completed with the Tiger 8653 hydraulic crane, delivering up to 8,600 lbs of lifting capacity and a 30.5-foot hydraulic reach. Ideal for long-reach work on lighter chassis, the 8653 features Auto II Speed Control, which automatically reduces crane speed under load for smooth, precise handling. A wireless proportional remote with a digital load display ensures visibility and control from start to finish.

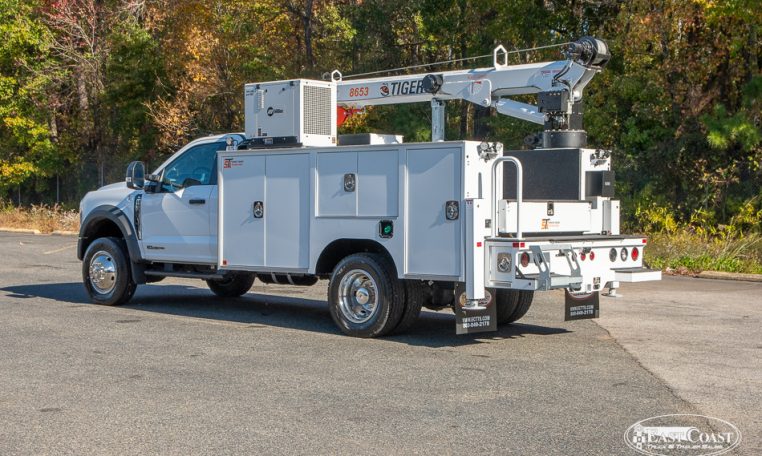

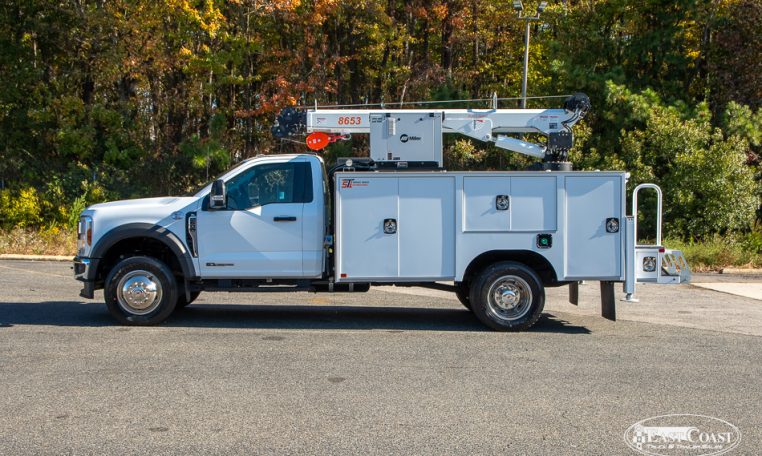

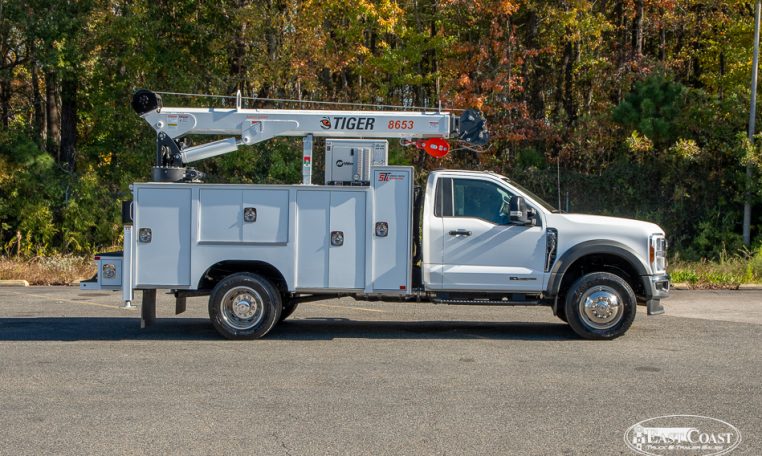

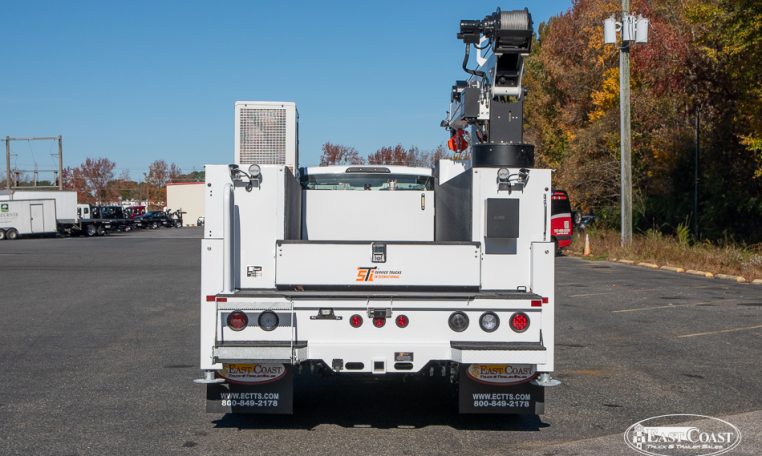

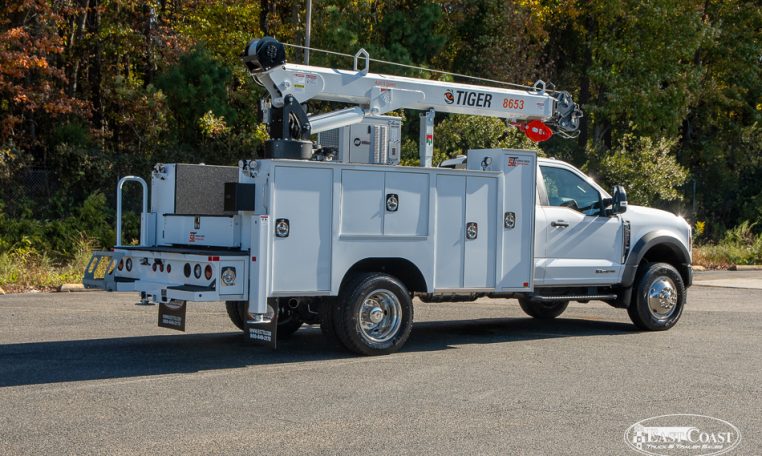

Altogether, this F-600 with STI 2250 body and Tiger 8653 crane offers a versatile, long-reach solution built for job sites that demand both reach and reliability.

UNIT SPECS

Crane Specs – Tiger 8653:

• Lift Capacity: 8,600 lbs at 5.8 ft
• Hydraulic Reach: 30.5 feet
• 4 Hydraulic Functions
• Hex Boom with Low-Profile Jib Head
• Boom-Mounted Planetary Winch

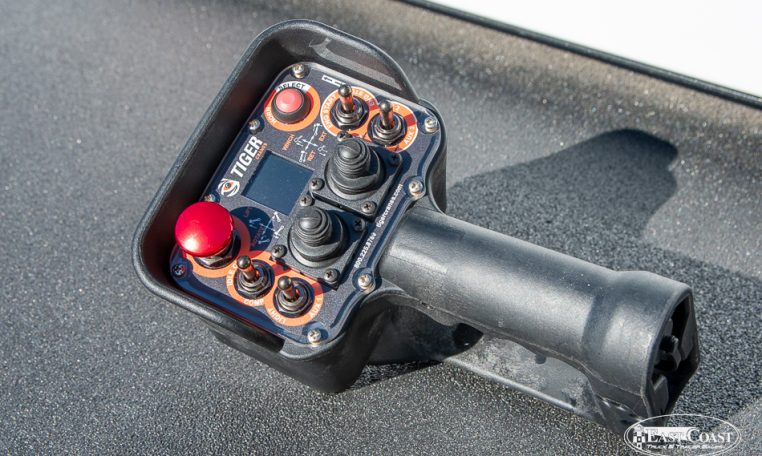

• Wireless Proportional Control with Digital Load Display

• Auto II Speed Control

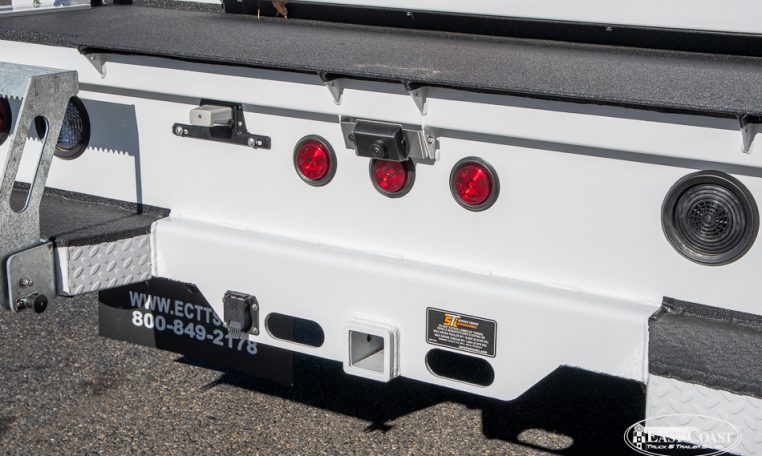

Body Specs – STI 2250:

• Body Length: 11 feet
• Cabinet Height: 50 inches
• 60-inch Compartment for Oxygen/Acetylene Bottle Storage
• Crane Body Rating: 47,000 ft-lb
• Chassis Compatibility: 23,000 GVWR
• Compartment Pressurization System: Standard feature that pumps filtered air through storage compartments when the ignition is on, helping to protect your tools from dust and moisture

Whether you’re lifting in tight spaces or reaching out further than most cranes on a 19.5k GVWR chassis can go, the 2250 with the Tiger 8653 is a field-ready setup built for reach, control, and day-to-day dependability.

CALL PORTSMOUTH (757) 465-2200 | CALL MANASSAS (703) 415-9333

DISCLAIMER: Specifications are believed to be correct but may contain errors and/or omissions. Pictures are representative and may not be identical. Mileage and prices are subject to change or correction without notice. Units listed for sale may already be sold or otherwise unavailable. Information on units listed is believed to be accurate, although errors can and do occur.
