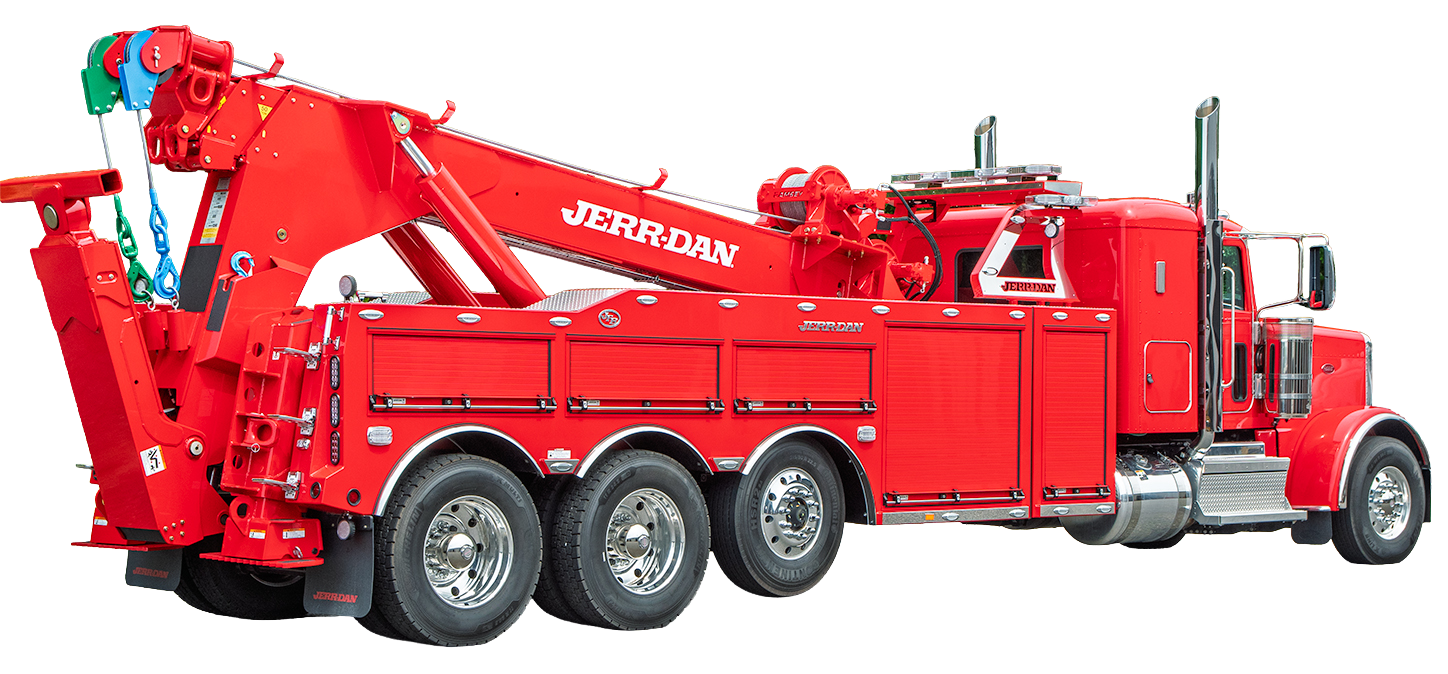

50 Ton Integrated Wrecker

Reach farther and lift more with Jerr-Dan 50 Ton Wreckers. Jerr-Dan offers this unit with a 2-stage or a 3-stage recovery boom unmatched in reach and capacity. Configure this unit with either the 530 (3-stage) or 565 (3 or 4-stage) underlift, this unit will bring the towing AND recovery performance demanded in today’s industry. Whether it’s handling standard lifts, or tasking complex rollovers, the Jerr-Dan 50 Ton Wreckers offer best-in-class performance. Now built with the JFB Body, Jerr-Dan completes the package with more for your business: more towing performance, more storage, more time-saving organization.

STANDARD FEATURES

Options

Optional Features

• Wireless Proportional Remote Control or Non-Proportional (All Boom Functions)
• 6 Side & 2 Rear Emergency Flashers (CA Compliant)
• 39″ x 51″ Tunnel Compartments
• Aluminum Dress Up Kit

Accessories

Underlift Features

• Retracted Lift Capacity & Reach (Off Tailboard)
  – Model 530: 53,000 lbs. Capacity, 72 in. Reach
  – Model 565 3-Stage: 56,500 lbs. Capacity, 87 in. Reach
  – Model 565 4-Stage: 56,500 lbs. Capacity, 73 in. Reach
• Extended Lift Capacity & Reach (Off Tailboard)
  – Model 530: 17,000 lbs. Capacity, 142 in. Reach
  – Model 565 3-Stage: 17,600 lbs. Capacity, 181 in. Reach
  – Model 565: 4-Stage: 17,600 lbs. Capacity, 174 in. Reach
• Max Towing Height & Negative Power Tilt
  – Model 530: 36 in. Tow Height, 20º Neg. Tilt
  – 565 3-Stage: 40 in. Tow Height, 17º Neg. Tilt
  – 565 4-Stage: 40 in. Tow Height, 17ª Neg. Tilt
• 3 or 4-Section High-Strength Hydraulic Boom
• 14,000 lbs. or 25,000 lbs. Tire Lift Option
• HD Tie-Down Straps, Chain Hook Adapters, Forks & Spring Lift Brackets Included
• 70º Side Pivoting Low Profile Cross Bar w/ 5″ Pin
• Underlift Camera (Option)

Specifications

Standard Features

• 2 or 3-Section High-Strength Hydraulic Boom
• Wrecker Boom Winches
  – Dual Planetary 50,000 lbs. Capacity
  – 3/4 in. x 250 ft. Wire Rope w/ 360º Swivel Hooks
  – Air Cable Tensioners & Free Spool
• High-Performance Polymer Slide Pads
• Boom Mounted D-Rings
• Driver & Passenger Side Proportional Controls
• Driver & Passenger Side Hyd. Pressure Gauges
• 3-Location Multiplex Electrical Controls
• 2-Location Multiplex Air Controls
• Telescoping Rear Stabilizers w/ Integrated Fold-Down Spade Feet
• Recessed Glad Hand & 7-Pin Connectors
• LED Amber Main & Auxiliary Light Bars
• LED Upper & Lower Hook-Up Lights
• LED Upper Work Lights
• LED Underlift Lights
• Jerr-Dan Boom/Body Logos
• Custom JFB Signature Badge
