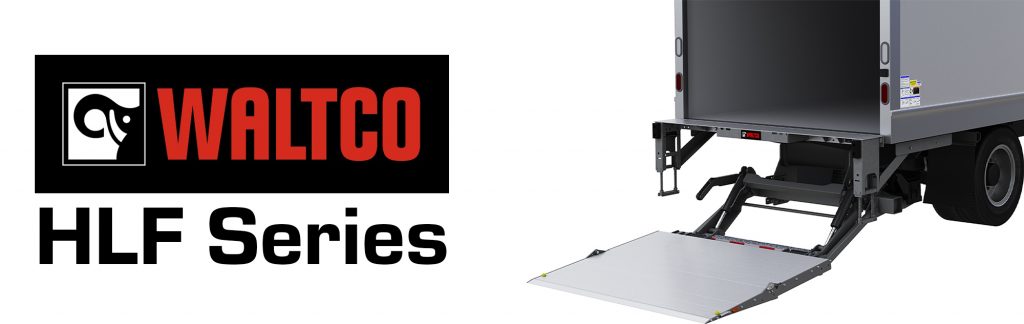

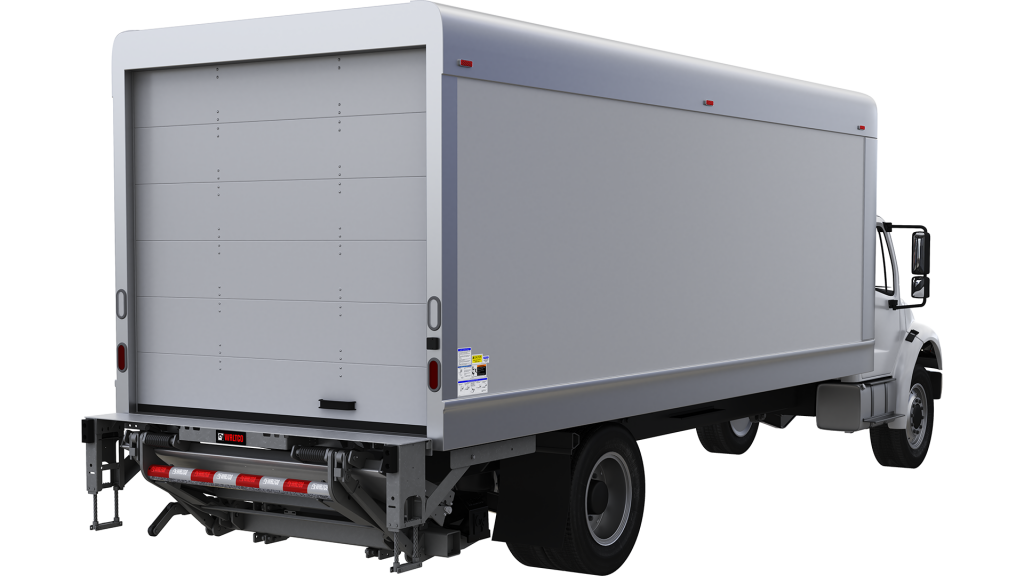

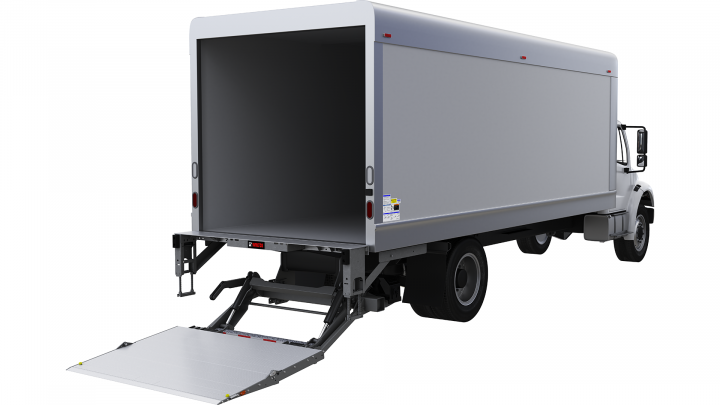

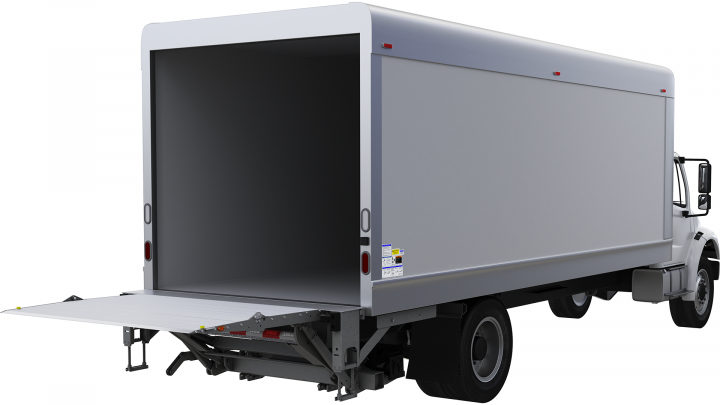

A simplified design that offers maximum convenience, performance and flexibility. The two-section, lightweight loading platform can be folded and stored beneath the truck body floor, enabling easy access to the cargo area without activating the lift. The liftgates are welded to the frame of the vehicle chassis to ensure optimum safety.
Knurled aluminium platform and galvanized mainframe comes as standard.
Specifications
Platform width: 84″
Platform depth: 60″
Lifting capacity: 2,500 lb., 3,000 lb., 4,000 lb., and 5,000 lb.
Bed height: Min 46″ to Max 60″
Platform: Aluminum
Ramp: Wedge
Weight of complete lift: 1,114 to 1,352 lbs.
Features
Bed Extension Options
We offer various bed extension options to accommodate additional needs. -102″ Wide Vehicle modification -Walk Ramp Compatible bed extension (bolt-on option for galvanized gates) -Bolt-on bed extension kit EM & HLF Only: -Swing door compatible bed extension HLF Only: -1/2″ Thick bed extension *WFL only offers the 102″ wide option
Additional Control Options
WALTCO offers many convenient options to allow you to control your liftgate safely. Dual Controls – conveniently allow liftgate operation from the side of the vehicle or from another location. This is convenient and safe for single driver deliveries, allowing less climbing and more control. Hand Held Remote Kit – allows a larger viewing area for the operator. The remote cord moves with you to allow more control and visibility of your work space. Cab-Mounted Shut-off Safety Switch – this switch is mounted inside the cab and allows the driver to keep power to the liftgate off while it’s not in use. This feature ensures the liftgate will not be available for unauthorized use.
Standard Galvanization
Standard Galvanization to all liftgate components to eliminate rust and prolong the life of your liftgate. *Platform in knurled aluminum*
Dock Bumper Options
WALTCO offers many additional options for various dock bumper requests. Some available options for our Flipaway dock bumpers include: Steps -Steel steps (one or two) -Wire rope step Lighting options -no lights -prepped for lights -red/white lights -red/red lights *Rubber Bumper Pad Kit for C-Series Talk to your WALTCO representative for specific requests.
Heavy Duty (up to 5,000 lb. capacity)
Flipaway Gate features a large knurled platform with individually replaceable extrusions, making the HLF the most popular Flipaway choice.
Safe and Fast
Standard power down feature keeps your gate running faster. Hydraulic cylinders are retracted and protected in the transit position to keep them safe from road debris.
Power Options Flipaway
Additional power options are offered for our Flipaway liftgates. Power Down Option – for our Flipaways that come standard with gravity down, we offer the option of power down. Tractor Wiring Kits – we offer wiring kits for your tractor Trailer Wiring Kit – single and dual pole kits and chargers for various setups Cables: – higher amperage cables available (200 amps) – longer 50′ cable available (150 and 200 amps)
