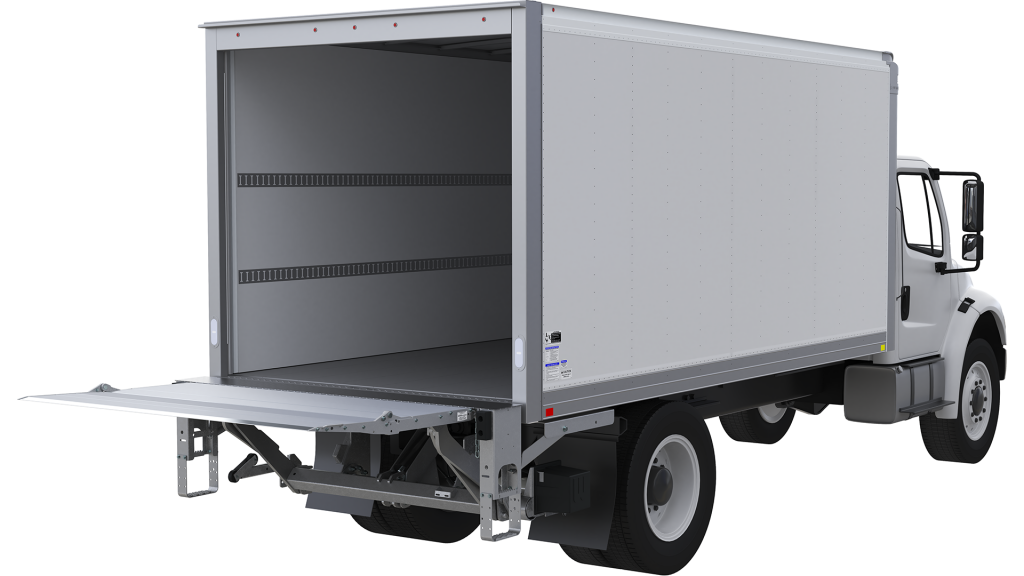

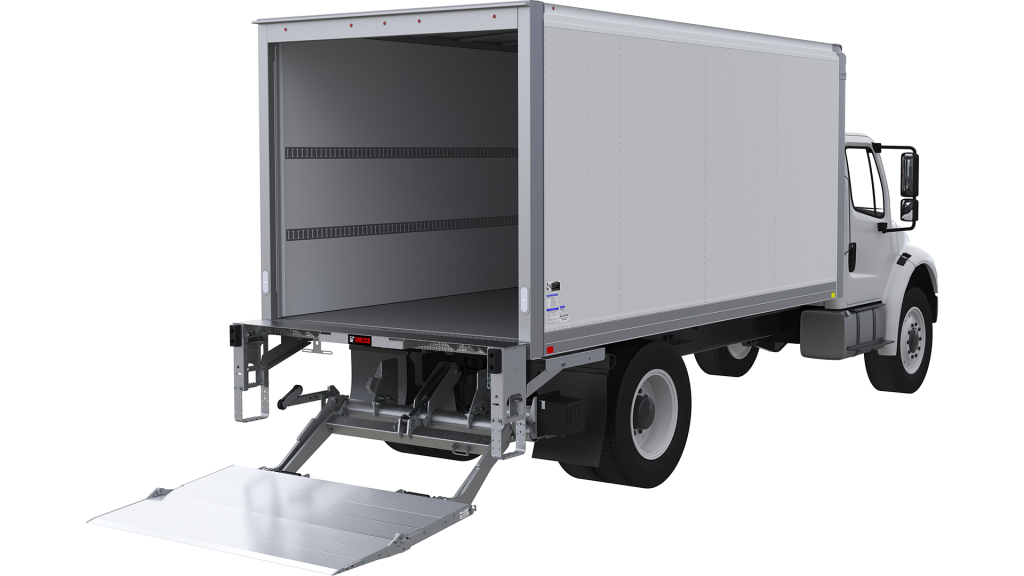

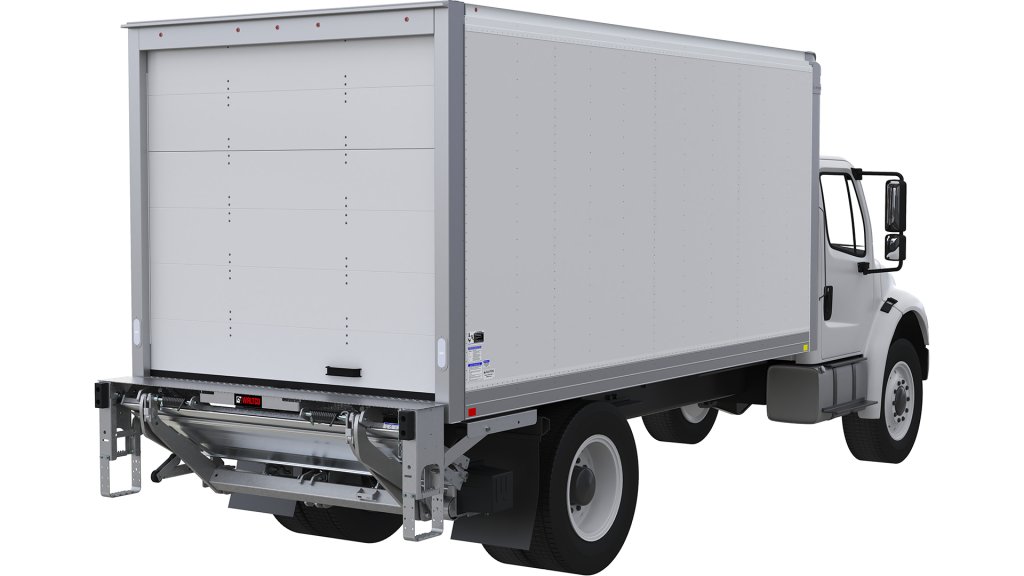

An efficient design with a two-section, folding platform that can be stored under the body floor, enabling easy access to the cargo area without activating the lift. The liftgates are welded to the frame of the vehicle chassis to ensure optimum safety.
Specifications
Platform width: 84″
Platform depth: 48″ to 50″
Lifting capacity: 2,500 lb. and 3,300 lb.
Bed height: Min 37″ to Max 54″
Platform: Steel or Aluminum
Ramp: Wedge
Weight of complete lift: 786 lbs. to 842 lbs.
Features
Mid Level Flipaway (up to 3,300 lb. capacity)
Flipaway Gate features larger steel or aluminum platforms that fold nicely under the truck to facilitate dock deliveries.
Aluminum Platform
Upgrade to an Aluminum Platform for weight savings and to protect against rust and corrosion.
Bed heights 36″-56″
Accommodates bed heights from 36″-56″ to fit most vehicles.
Reduced Maintenance Features
Reduced Maintenance Features, including grease fittings and maintenance free bearings at hinge points, means less downtime and more deliveries.
Auto Adjust Tilt
The Auto Adjust Tilt Function simplifies operation by automatically tilting the platform down as it lowers from bed level to ground level.
Additional Control Options
WALTCO offers many convenient options to allow you to control your liftgate safely. Dual Controls – conveniently allow liftgate operation from the side of the vehicle or from another location. This is convenient and safe for single driver deliveries, allowing less climbing and more control. Hand Held Remote Kit – allows a larger viewing area for the operator. The remote cord moves with you to allow more control and visibility of your work space. Cab-Mounted Shut-off Safety Switch – this swich is mounted inside the cab and allows the driver to keep power to the liftgate off while it’s not in use. This feature ensures the liftgate will not be available for unauthorized use.
Galvanized Mainframe
WALTCO offers the option to galvanize the mainframe of the liftgate. This option extends leadtime by 8 weeks, but increases the overall life of your liftgate. When you galvanize your liftgate, you protect it from rust and harsh weather elements. This is a sound investment for the total life of the liftgate.
Bed Extension Options
Various bed extension options are available to accommodate additional needs. -102″ Wide Vehicle modification -Walk Ramp Compatible bed extension (bolt-on option for galvanized gates) -Bolt-on bed extension kit EM & HLF Only: -Swing door compatible bed extension HLF Only: -1/2″ Thick bed extension *WFL only offers the 102″ wide option
Dock Bumper Options
WALTCO offers many additional options for various dock bumper requests. Some available options for our Flipaway dock bumpers include: Steps -Steel steps (one or two) -Wire rope step Lighting options -no lights -prepped for lights -red/white lighs -red/red lights *Rubber Bumper Pad Kit for C-Series Talk to your WALTCO representative for specific requests.
Power Options Flipaway
Power Down Option – for our Flipaways that come standard with gravity down, we offer the option of power down. Tracter Wiring Kits – we offer wiring kits for your tractor Trailer Wiring Kit – single and dual pole kits and chargers for various setups Cables: – higher amperage cables available (200 amps) – longer 50′ cable available (150 and 200 amps)
